1 Channel Video fiber multiplexer
The vedio fiber multiplexer transmit 1channel digital video broadcasting, 1channel high-fidelity audio, 1 channel asynchronous date,1 channel 10/100M adapt Ethernet date to one fiber efficiently

  Request price     Contact us

INFORMATION

Model name:BD-DV10000
Product function: The video fiber multiplexer transmit 1 channel digital video broadcasting, 1 channel high-fidelity audio, 1channel asynchronous date,1 channel 10/100M adapt Ethernet date to one fiber efficiently. With complete digital and technology, DV 1000series support any high resolution dynamic or stationary picture high-fidelity transmit. It also can be anti-disturbance against several signals, environment, and work stably .It is widely used in security monitoring and control, high way, electronic police, automation, intelligent residential districts and so on.
It can work shortly after it is installed. You could select any date interface by set. It is connected easily and it can indicate power supply, link, video, also adjust video. There are two ways to install: desktop and rack.
Features:
  • technical design, the whole surface by decoration.
  • electrical circuit is designed by hardware scheme (except chip), and production is not effected by purchasing.
  • Complete digital fiber transmit platform.
  • No need to adjust when opened.
  • Based on self copyright IC.
  • No disturbance by analog in adjusting channel, picture and range.
  • 4 steps filtering
  • Complete digital, broadcast transmit efficiently
  • High speed 10/100M Ethernet channel.
  • Full speed asynchronous date channel
  • Elastic configuration on the same platform.
  • Power supply, link, video by dynamic indication.
  • Self-adapt in PAL,NTSC,SECAM.
  • ASIC design
  • Farthest transmit distance:100KM
  • Power supply:220v,-48v,+24, +12v,+5(optional)
  • The two poles of Direct power supply can be exchanged.
  • Support SNMP management in our chassis installation.
  • Three installations: wall method, rack in 19inches 1U, or plug in-card.

     Applied field
    Intelligent transportation system;
    high speed way video monitoring and control system;
    toll monitoring and control system;
    close circuit TV industry monitoring and control;
    TV program switching channel transmit;
    high-fidelity video conference system;
    security monitoring and control system.
    Technical parameter:
    Video interface 1/2/4/8/16 line
    input/output impedance: BNC 75ohm unbalance interface
    input/output voltage: peak 1 vpp, max 1.5 Vpp
    Signal: PAL/NTSC/SECAM
    Video bandwidth: 8MHZ
    Video number wide: 8/10/12 bit
    Differential gain: <1%
    Differential phase: <0.6°
    Slope: <0.5%
    luminance delay inequality: 10ns
    luminance gain gap: ±10%
    Weighted noise ratio :66db
    Date interface

  • Physical interface: industry standard terminal lead
    Work way:  full duplex/half duplex
    Interface type: RS-232/485/422,Manchester
    RS232 rate: 0-115.2Kbps
    RS-422/485 rate: 0-115.2Kbps
    RS-422/485 transmit distance: 0-1200m
    RS-422/485 agreement  support RS-485/422 agreement
    Error rate: <10-9
    Fiber interface
    Physical interface: FC/PC, ST/PC
    Fiber type: single/multi module
    Transmit distance: multi module with 0-2km,single module with 0-25km,0-60km,0-100km
    Audio interface
    audio input/output: impedance 600ohm balance/unbalance interface,industry standard terminal lead.
    audio input/output level :2Vp-p
    frequency response :10HZ-20KHZ
    audio number width :24 bit
    Weighted noise ratio: 80db
    Total Harmonic Distortion :0.1%
    Ethernet interface:
    Physical interface: shielding RJ-45
    support  IEEE 802.3/802.3u/802.1q VLAN
    work way : IEEE 802.3x full duplex and Back-Pressure half duplex flow control.
    Work environment:
    Work temperature: -30C~+75C
    storage temperature: -45C~+85C
    humidity : 0~95% without condensation
    input voltage :220V, -48V, +24V, +12V, +5V optional
    power <=5W (single terminal)

  • Application



    video fiber multiplexer application diagram

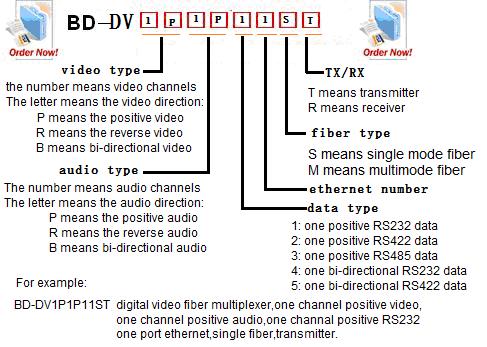

    Order Information





    Qustion: How many kinds interface does the video fiber mux device support?

    Answer: The video fiber mux can support Video/Audio/ethernet/data/pots interface,Audio/ethernet/data/pots are optional interface,customer need to notice our company when place order.

    Qustion: Are the ransmitter and receiver on one same device??

    Answer: No,it's sperated. The transmitters is a device connecting with your camera,the receiver is another device connectiong to monitor.

    Qustion:Do the optical video ransmitter and the optical video receiver need to work together?

    Answer: yes,the transmitter and the receiver need work together,they need to work as pair.
