Voice(FXS/FXO) over Fiber,phone over fiber modem
one channel voice(FXS/FXO) phone over fiber modem,cost effective,fiber distance up to 120Km.

  Request price     Contact us

INFORMATION

Functions
The voice(FXS/FXO) phone over fiber modem realizes one channel voice phone over fiber transmission. This is cost-effective phone over  fiber mini device,which is suitable for one channel voice,low cost application field. Its merits include complete warning function, high integration, low consumption, stable performance and convenient usage.



PRODUCT CHARACTERISTIC

   ●   Have two row of LED , one indicate local status, the other indicate remote status

   ●   Realise auto-speed setting of local device to remote device

   ●   Having pseudo random code test function, can used as a 2M Protocol Analyzer

   ●   Provide 1 channels voice access, support calling indication

   ●   Voice port supports O port and S port, O port connect with PBX, S port connect with phone users



Optical interface

   ●   Optical wavelength: single mode 1310nm/1550nm

   ●   Fiber: single fiber or double fiber for option

   ●   Transmitting consumption: -9dBm/-5dBm

   ●   Transmission range: 0-50Km/120Km for option

   ●   Optical interface: SC/FC

   ●   Receiving and dispatching module: >-6dBm

   ●   Optical receiver receiving sensitivity <-36 dBm (BER<10-11)

   ●   Fiber circuit code: NRZ code


Voice Interface
FXS:
Alarm voltage:     75V
Alarmf requency:    25HZ
2 line input impedance:  600Ω (hanging off)
Wastage:         40db

FXO:
Alarm detecting voltage:  35V
Alarm detecting frequency: 17HZ-60HZ
2 line input impedance:    600Ω (hanging off)
Wastage:               40db

one channel POTs fiber multiplexer with built-out power














                                                         with built-out power adapter

one channel POTs fiber multiplexer built-in power













                                 built-in power POTs fiber multiplexer

Power supply

working voltage range wide, good
anti-disturb and Isolation, work stable
option I – DC,range DC-36V~DC-72C
option II – AC,range AC90V~AC240V
Power Consumption:      <=3 Watts

environment condition
Operating temperature:  0C~+50 C
Storage temperature:   -20 C~+70 C
Relative temperature:95% (uncondensed)

Dimension
   110mm(L) x 80mm(W) x 20mm(H)

Application

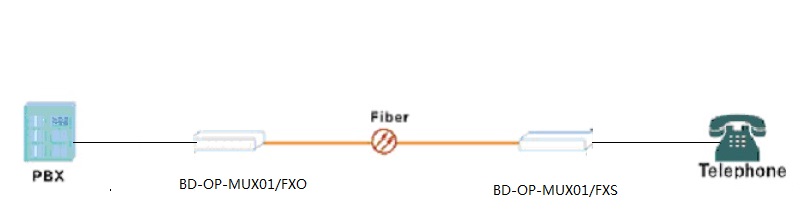

FXS/FXO voice over fiber application diagram



Ordering information
