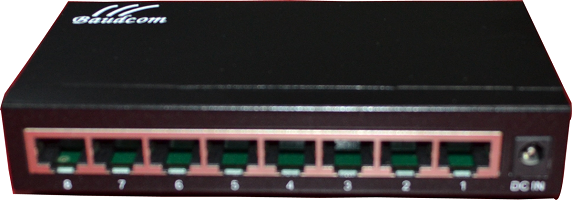

8 Ports Unmanaged Gigabit Ethernet Switch
The S1608, a low-cost desktop network switch, is designed by Hi-Net Technology Company. It provides 8 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

  Request price     Contact us

INFORMATION

Product Description:

The BD-GS9008E-10, a low-cost desktop network switch, is designed by Hi-Net Technology Company. It provides 8 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The BD-GS9008E-10 is a metal-shell device which is useful for the small office and home using.



Product Features:

   IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z

   Provides 8 10/100/1000Base-TX ports

   High back-plane bandwidth 16Gbps

  4K MAC address table

   Reliable Power Adapter

   IEEE802.3x Flow control

   Surge protection for power port and data ports

   Plug and play, no configuration required

   EMI standards complies with FCC, CE class B



Product Specifications:

Item

Description

Summarize

Fixed port

8 10/100/1000Base-TX ports.

LED Indicators

PWR, Speed, Link/Act VLAN LED.

Input voltage

100V240V AC50/60Hz

Network Media

10BASE-TX: UTP category 5, 5e cable (≤250m)
100BASE-TX: UTP category 5, 5e cable (≤150m)

1000BASE-TX: UTP category 5, 5e cable (≤150m)

Forwarding Rate

10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port

1000BASE-TX: 148800pps/port

Power consumption

3W

Operating temperature

0℃~40.

Storage temperature

-10℃~70.

Relative humidity

20%85% (non-condensing).

Thermal methods

Fanless.

Switching capacity

16G.

MAC address table

4K.

Traffic control

IEEE 802.3x full-duplex flow control.

Size

9.2*6.9*2.5cm

Packing Size

19.1*14.1*6.4cm

Unit weight

400g

Package

BD-GS9008E-10 Network Switch

User Manual

Power Adapter

Warranty Card
