INFORMATION

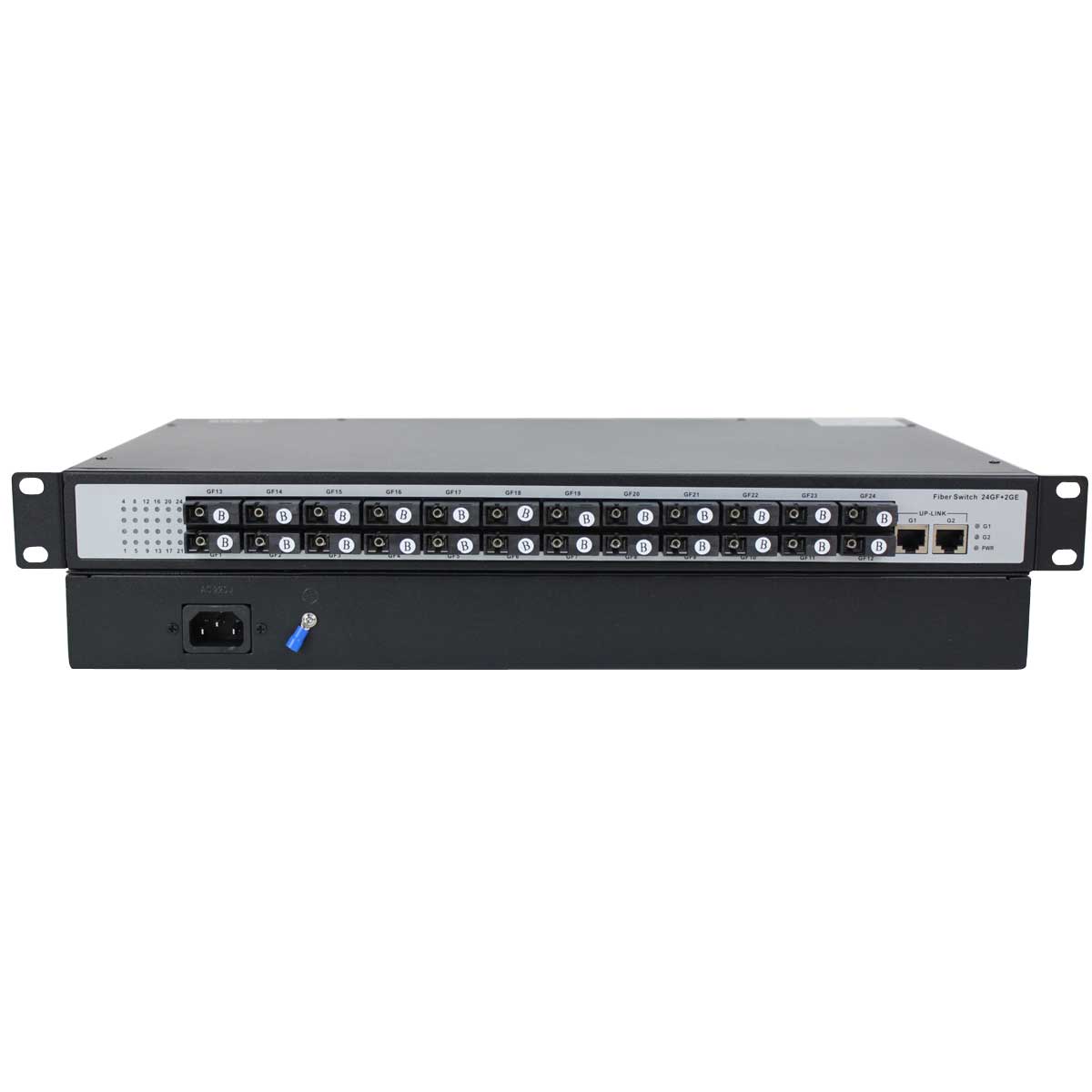

BD-S1024F Fast Ethernet optical fiber Media Converter have 24*100Base-FX optical ports and 2*1000Base-TX ports. optical fiber transmission distance 3~100KM(Optional), support single fiber/double fiber/single mode/multimode.
Key Features:
◆ 24FE FX,single fiber or dual fiber optional
◆ Support camera, wireless AP, and IP phone etc.
◆ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
◆ Auto MDI/MDIX.
◆ Support port lightning protection.
◆ Store-and-forward.
◆ All ports support wire speed switch, jumbo frame transmission.
◆ Plug and play, self-adaption.
◆ Panel lights can monitor operative mode and malfunction analysis.
Product specifications:
Model
|
BD-S1024F
|
Ports
|
24*100M FX+2*GE
|
Exchange Mechanism
|
Store-and-forward
|
Bandwidth
|
16G
|
MAC
|
4K
|
Functional
|
Inhibition network storm, anti ARP virus attack, anti DHCP conflict
|
Environmental
|
Working Temperature: 0℃～40℃
Storage temperature: -40℃～70℃
|
Working Humidity ：10%～90% RH non-condensing
Storage Humidity：5%～90% RH non-condensing
|
Standards
Protocols
|
IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3x
|
Product specifications
|
Product Size:485mm*260mm*45mm（L*W*H）
Weight:2.5kg
|
Order information:
BD-S1024F
|
Fast Ethernet switch,24FE fiber port,2GE ports, dual fiber,20km,Unmanagable,power AC220V
|
