INFORMATION
Product
Description
This BD-S31024FM switch provides a network point for
data transmission. All the 24 Ethernet ports can be connected with 10/100Mps
quickly, and the uplink port is 1.25Gbps fiber interface. The switch features
simple and reliable design, automatic identification Ethernet requirements,
duplex and high-speed. This cost-effective switch provides network layout need to simplify
wireless access point (AP) and IP-based surveillance cameras network cameras in
order to install in commercial network and home network. It is ideal choice for
those want to deploy a small commercial network and home network that use
wireless access point (AP) and IP-based surveillance cameras.
Features
● Can transfer
data for network surveillance cameras
● 24x 100Mbps
auto-sensing RJ45 ports, 2x
10/100/1000M combo ports
● Supports
port auto-flip (Auto MDI/ MDIX)
● Uplink
port: 1.25Gbps SFP fiber
interface
● Maximum
power consumption: 20W
● Adopts
store-and-forward architecture
● Features
with fanless, natural cooling, small, compact and quiet design, suitable for
desktop or wall mounting
● Built-in
1U rack power supply series, easy to place it into standard mounting brackets
● Optic
fiber module is not included, can be ordered separately
● Remote
Web interface for Switch management
Technical Specification
|
Product
Name
|
Managed
Ethernet Switch with 24 10/100M Ports and 2 Gigabit Combo Ports
|
|
Product
Model
|
BD-S31024FM
|
|
Connector
|
24x 10/100M copper
cable RJ45 ports(all ports
support MDI/MDIX)
2x 10/100/1000M combo ports
|
|
Transfer
Mode
|
Store-And-Forward
|
|
Network Medium
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 and
more UTP(≤100 meter)
|
|
Single mode(9/125um) optical
transmission, transmission
distance: 25km(double
optical default, single optical alternative)
|
|
Performance
Specifications
|
Bandwidth: 8.8Gbps (non-blocking)
Network Latency
(100 to 100M bps): maximum delay less than 20 microseconds
Packet Buffer
Memory: 2.75M
Address Database
Size: 4K
MTBF: 190,000
hours (about 21 years)
|
|
Network
Protocols and Standards
|
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
|
|
LEDs
Status
|
System: power supply
Every Port:
connecting, Ethernet working
status
|
|
Power
Consumption
|
20W
|
|
Dimensions/Weight
|
Dimensions: 440x275x44.5mm; Weight:4.878kg
|
|
Working
Environment
|
Operating
Temperature: -20 ° ~ 75 ° C
Storage Temperature: -20 ° ~ 75 ° C
Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 10% ~ 95%, non-condensing
Working Altitude: 3000 m (10,000 ft)
Storage Altitude:
3,000 m (10,000 ft)
|
|
Radiation
|
CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
|
|
Safety
|
CE Mark ,commercial
CE/LVD EN60950
|
|
Warranty
|
1 year warranty
|

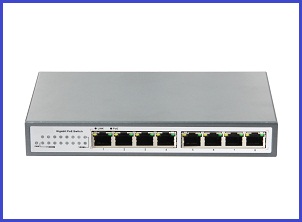

Product Dimension Display:
Product
Usage Display
Product Ordering Information
|
Model
|
Description
|
|
BD-S
31024FM
|
24x
10/100M Ethernet ports + 2x gigabit combo ports Managed Ethernet Switch
|
Product
packing List
|
Packing
Lists
|
Managed Ethernet Switch with 24 10/100M Ports and 2 Gigabit
Combo Ports (BD-S31024FM)
|
|
Power Cable
|
|
User Guide
|
|
Warranty Card
|
