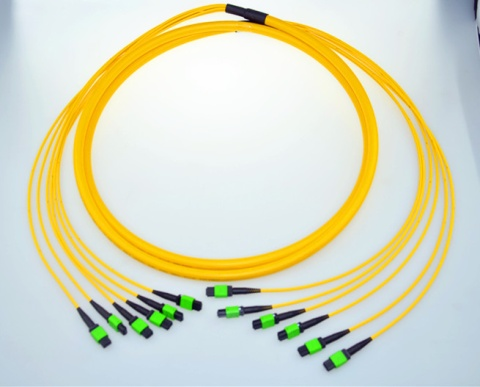

Features:
Backbone installation
Choice of either
Both ends with pins(Male type) or both ends without pins(female type)
Fiber counts available in 12/24/36/48/72/96/144 fibers
Round & mini-core cable structure to eliminate bend sensitivity
Available in singlemode(9/125um),multimode(50 or 62.5/125um)and 10Gig fiber
Optional pulling eye design to fit for different installation environment
Associated Standards：
Meets IEC Standard 61754-7& JIS C5982
Structured cabling per TIA-568-C
Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
Applications：
Optical switching interframe connections
High fiber density card edge access
Array trunk cables
Datacenter cabling

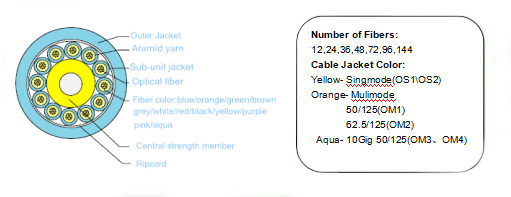

Cable Structure IIIustration:
Cable Assemblies Technical Information
Polarity:
All agix’s mpo(MTP) cable assemblies in this document are having Straight Polarity(A-to-A,B-to-B)
Cross Polarity(A-to-B,B-to-A) or Pair Flip polarity is available, please contact our sales team for details.
Performance of Assemblies:
MPO Termination:
Fiber Type
|
Single Mode
|
Multi-mode
|
Standard Insertion Loss
|
Typical（dB）
|
0.35
|
0.35
|
Maximum（dB）
|
0.70
|
0.70
|
Low Insertion Loss
|
Typical（dB）
|
0.20
|
0.20
|
Maximum（dB）
|
0.35
|
0.35
|
Return Loss （dB）
|
≥60（APC）
|
≥20（PC）
|
≥50（PC）
|
Tensile Strength （kgf）
|
10
|
Durability （dB）
|
≤0.2 500 matings
|
Working Temperature （℃）
|
-20 ～+75
|
Testing Wavelength （nm）
|
1310/1550
|
850
|
Generic Connector Termination:
Fiber Type
|
Single Mode
|
Multi-mode
|
Parameter
|
UPC
|
APC
|
UPC
|
Insertion Loss Maximum （dB）
|
≤0.3
|
Return Loss （dB）
|
≥50
|
≥60
|
≥35
|
Durability （dB）
|
≤0.2 500 matings
|
Working Temperature（℃）
|
－40 ～+85
|
Testing Wavelength （nm）
|
1310/1550
|
850
|
