INFORMATION

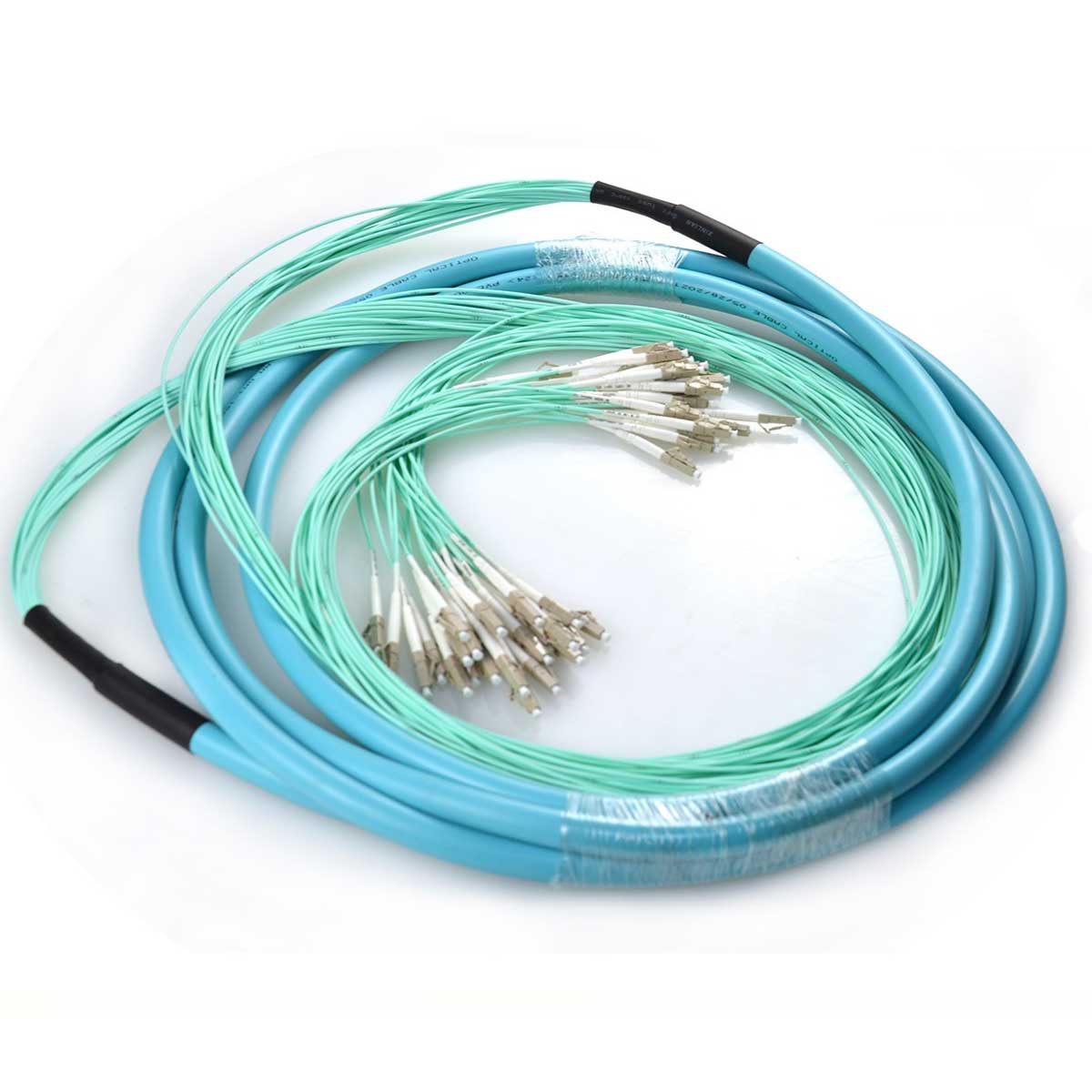

Fiber Breakout Patch Cords are used to provide optical connection for fiber optic electronics.
The use of the patch cord provides a quick and
easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to
the electronic equipment
and providing patching within the fiber paths.The Breakout fiber patch cord can be used as a building
backbone or horizontal
distribution, and they are operating in an harsh environment.
Specifaction
Parameter
|
FC,LC,SC,ST
|
|
SM
|
MM
|
|
UPC
|
APC
|
UPC
|
APC
|
Operating Wavelength(nm)
|
1310,1550
|
850,1300
|
Insertion Loss(dB)
|
≤0.3
|
≤0.3
|
≤0.3
|
Return Loss(dB)
|
≥55
|
≥60
|
≥35
|
Repeatability(dB)
|
≤0.1
|
Interchangeability(dB)
|
≤0.2
|
Plug Time（Times）
|
≥1000
|
Tensile Strength（N）
|
≥100
|
Durability（dB）
|
≤0.2
|
Operating Temperature（℃）
|
-40~+75
|
Storage Temperature（℃）
|
-40~+85
|
