Introductio

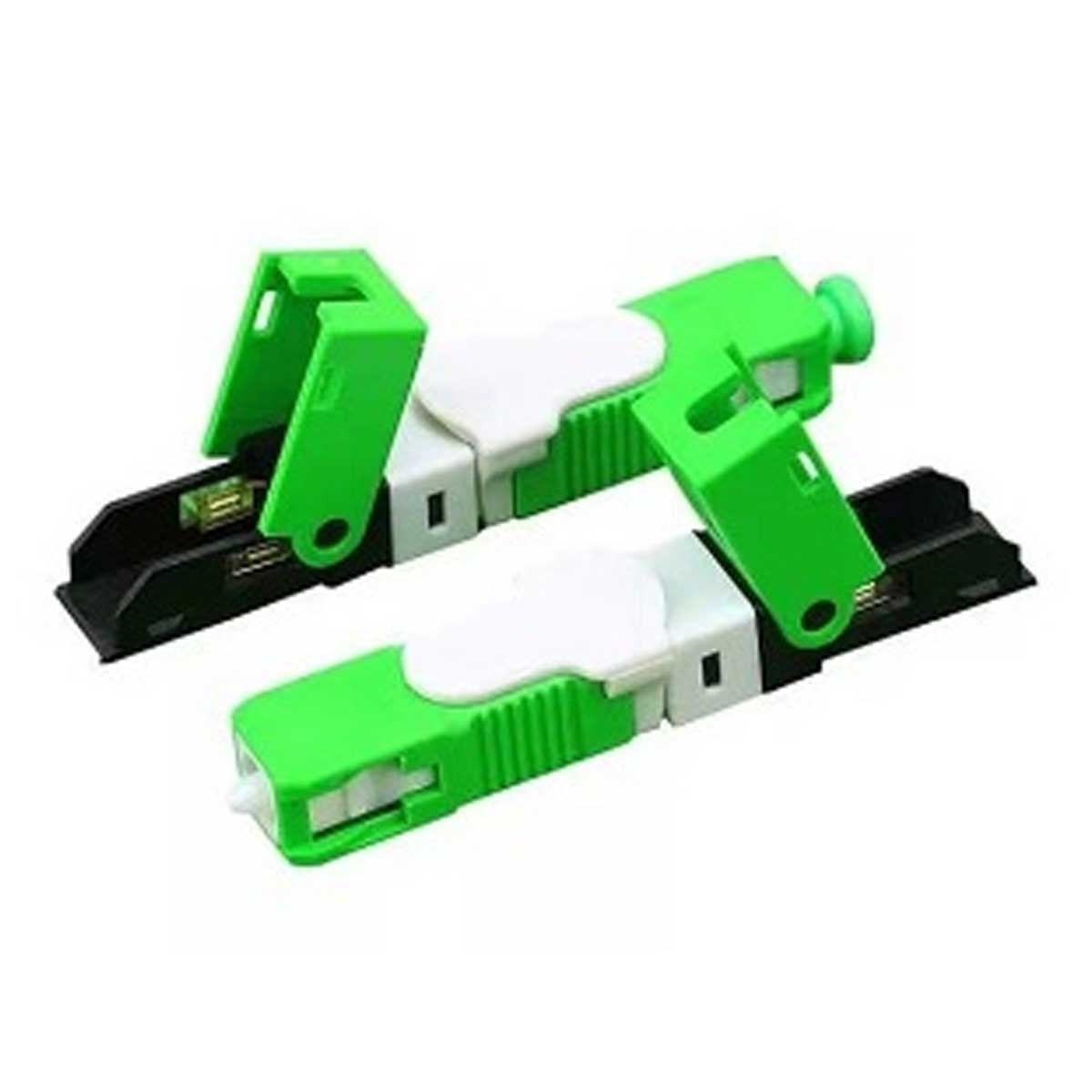

Quick SC assembly connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system with features of high installation quality, high success rate and high reliability. Applicable to 2*3,2*1.6 cables.
Operation Instruction
Necessary Tools
FTTH Drop Cable Stripper Fiber Stripper Fiber Cleaver
Specification
Parameters
|
Value
|
|
Parameters
|
Value
|
Insertion Loss
|
Average ≤0.3 DB, max ≤0.5 DB
|
|
Repeatability (500 Mating Times)
|
Average ≤0.3 DB, max ≤0.5 DB
|
Return Loss
|
≥ 45dB
|
|
Temperature cycle
|
Tensile strength
|
F>50N
|
|
Vibration test
|
Operating Temperature
|
-20 ~ +75℃
|
|
Flooding test
|
Storage Temperature
|
-40 ~ +85℃
|
|
Tensile strength
|
F>50N
|
Ordering Information
FC-SC-A-08
|
08type fast connector, SC/APC
|
FC-SC-U-08
|
08type fast connector, SC/UPC
|
