INFORMATION
Features:

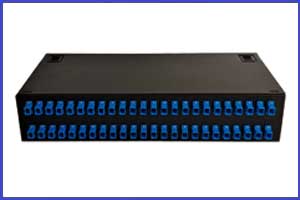

Fixed type 48Port ODF Fiber Patch Panel is High quality cold rolled sheet forming, electrostatic powder spraying technology, smooth surface, not east to rust. High strength sheet metal, long-term using is not easy to deformation. The 48Port ODF Fiber Patch Paneledges of metal parts are designed with rounded corners to avoid damage to cables. The bottom plate is designed with sliding design, for the patch panel already installed on the cabinet, the wiring can be adjusted without removing the patch panel.
Application:
- Local Area Network
- CATV Network
- FTTx FTTH System
- Wide Area Network
- Test Instruments
Specification:
Model
|
fixed 48ports ODF
|
Type
|
19inch Fixed Type
|
Material
|
1.2mm CRS(Cold Rolled Steel)
|
Size W*D*H (mm)
|
430*200*2U
|
Max Capacity (Core)
|
48
48pcs FC SX adapter
|
Included Accessories
|
4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws
|
Product Color
|
Black
|
Weight
|
5kg/unit
|
Working Temperature
|
-40~+85°C
|
Storage Temperature
|
-40~+85°C
|
Outer Carton Dimension (mm)
|
485*305*425 / 3pcs
|
Outer Carton Weight (kg)
|
18 / 3pcs
|
