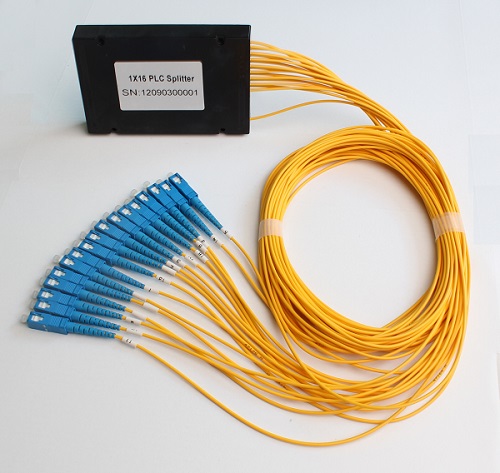

Planar Lightwave Circuit Splitter
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

  Request price     Contact us

INFORMATION

Description

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Baudcom provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features

 ●    Low Insertion loss

        ●    Low PDL

        ●    Compact Design

        ●    Good channel-to-channel uniformity

        ●     Wide Operating Wavelength:

        From 1260nm to 1650nm

  ●    Wide Operating Temperature:

         From -40 to 85

  ●    High Reliability and Stability



Applications

  ●    FTTX Systems

  ●    PON Networks

  ●    CATV Links

  ●    Optical Signal Distribution

Compliance

  ●    Telcordia GR-1209-CORE-2001

  ●    Telcordia GR-1221-CORE-1999

*        RoHS

Specifications

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

1×128

Operating Wavelength (nm)

 12601650

Fiber Type

G657A or customer specified

Insertion Loss (dB)P/S Grade

 3.8/4.0

 7.1/7.3

 10.2/10.5

13.5/13.7

16.5/16.9

20.5/21.0

24.2/24.5

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2

2.5

Return Loss (dB) P/S Grade

55/50

55/50

55/50

55/50

55/50

55/50

55/50

Polarization Dependent Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

0.35

Directivity (dB)

55

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

0.5

Temperature Stability(-4085 )(dB)

0.4

0.4

0.4

0.5

0.5

0.5

0.5

Operating Temperature ()

-4085

Storage Temperature ()

-4085

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

50×4×4

50×7×4

60×12×4

NA

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

50×7×4

50×7×4

50×7×4

60×12×4

80×20×6

100X40X6

NA

Notes:

1.       Specified without connectors.

2.       Add an additional 0.15dB loss per connector.



Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

2×128

Operating Wavelength (nm)

 12601650

Fiber Type

G657A or customer specified

Insertion Loss (dB)

4

7.6

11

14.4

17.5

21

24.5

Loss Uniformity (dB)

0.6

1

1.2

1.5

1.8

2.2

2.5

Return Loss (dB) P/S Grade

55/50

55/50

55/50

55/50

55/50

55/50

55/50

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.4

0.5

0.5

0.5

0.5

0.5

Temperature Stability(-4085 )(dB)

0.4

0.4

0.4

0.5

0.5

0.5

0.5

Operating Temperature ()

-4085

Storage Temperature ()

-4085

Device Dimension (mm)   (L×W×H)

40×4×4

50×4×4

50×4×4

50×7×4

60×7×4

60×12×4

NA

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100X40X6

NA

Notes:

1、  Specified without connectors.

2、  Add an additional 0.15dB loss per connector.


FAQ:

Q: What is the Total Input Power (nW) of the PLC splitter?

A: The total input power is 300-500mW,it is enough for normal application.



Ordering information


Related Products

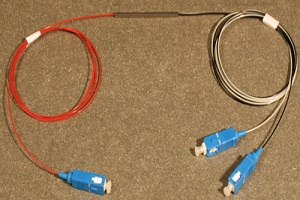

1x2 WDM Optical Fiber Splitter

1310/1550nm 1x2 WDM Splitter can be used to combine or split 1310nm and 1550nm optical signals.

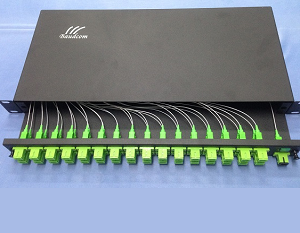

Rack Mount PLC Splitter
