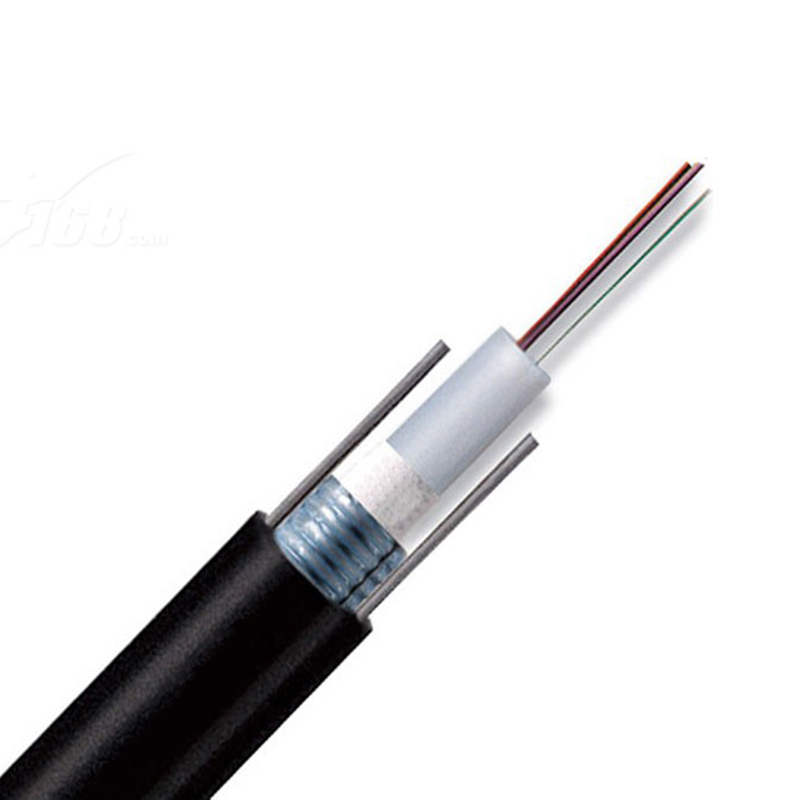

6core Direct Buried Optical Fiber Cable
6core Direct Buried Optical Fiber Cable GYTA53 6B1.3

  Request price     Contact us

INFORMATION

Description

 Product Type  GYTA53 6B1.3
 Product ID  B0410061
 Cable Standard  YD/T 901
 FiberStandard  GB/T 9771.1



Specification





 Type of fiber  G.652D
 No. of fiber  6
 No. of Tube  1
 No. of fiber per tube  6
 Sheath thickness  2.0mm
 Cable diameter  12.9mm
 Cable sectional area  131mm2
 Cable weight  164kg/km
 Cable print  GYTA53 6B1.3

Cable performances

 Long term tension load  1000N
 Short term tension load  3000N
 Long term crush load  1000N
 Short term crush load  3000N
Minimum statics bending radius  165mm
 Minimum dynamic bending radius  325mm
 Installing temperature  -10~+40
 Operating temperature  -40~+60



Ordering information
