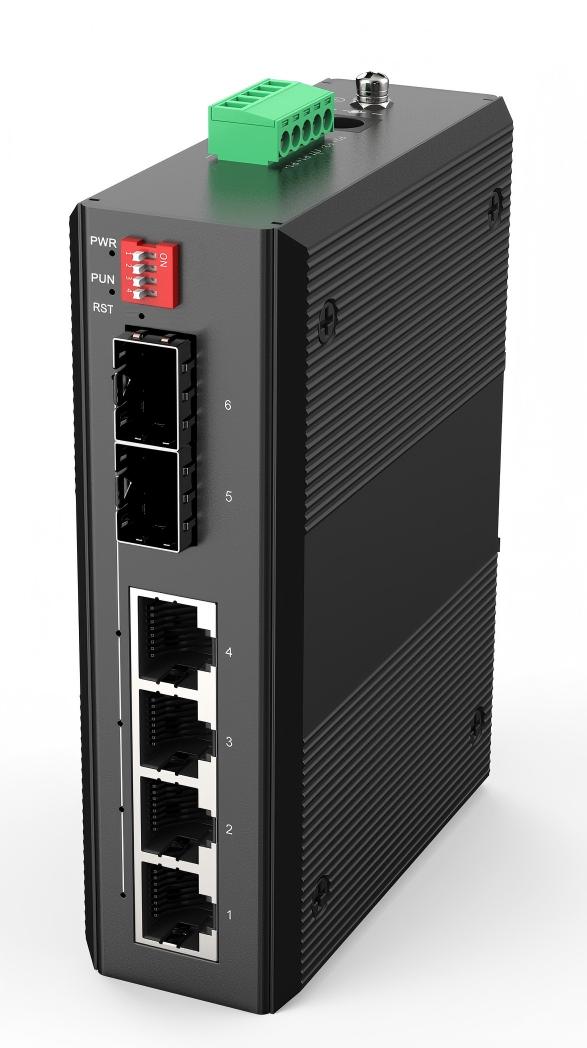

- 4 Ethernet switch：4x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-FX fiber ports
- Support Auto-MDIX, and full/half duplex self-negotiation mode
- Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
- Support 9K bytes giant frame, compatible with various extension protocol
- Support IEEE802.3az energy efficient Ethernet technology
- Electric 4KV surge protection, easy to use in outdoor environment
- Complete status indicator, working state at a glance
- Power input polarity protection design, no worry about wrong operation
- Full gigabit L2 management, easy to manage the industrial network by WebGUI
- Build up a redundant network with STP/RSTP
Industrial Case and Installation
- IP40 Aluminium case, Fanless design
- 9-56V DC redundant power with reverse polarity protection
- DIN-rail and wall mount installation
- -20 to +70℃ operating temperature
4 Ethernet switch Specification
Physical Port
RJ45 port and speed
|
4x10/100/1000Base-TX
|
Fiber port and speed
|
2x100/1000Base-FX
|
Parameters
Ethernet standards
|
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging
|
Packet buffer
|
1Mbits
|
Maximum packet length
|
Up to 9k Bytes
|
MAC address table
|
4K
|
Transmission mode
|
Store and Forward(full/half duplex mode)
|
Exchange property
|
Delay time: < 7μs
Backplane bandwidth: 12Gbps
Packet forwarding rate: 1488100 (64Byte)
|
LED Indicator
Power
|
Connect-always
|
RJ45
|
Link/Act: connect-always; data exchange-twinkle
|
Fiber
|
Link/Act: connect-always; data exchange-twinkle
|
Power Information
Power access mode
|
Phoenix terminal, DC seat
|
Redundant power input
|
DC 9-56V ,Redundant dual inputs
|
Overload protection
|
Yes
|
Power reverse
|
Support
|
Power consumption
|
Full-load<10W
|
Software Features
Redundant Network
|
Support STP/RSTP
|
Multicast Support
|
Support IGMP Snooping V1
|
VLAN
|
Support IEEE 802.1Q 4K VLAN
|
QOS
|
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA
|
Diagnostic Maintenance
|
Support port mirroring, Ping
|
Management Function
|
WEB
|
Security
|
Broadcast/Multicast Storm Protection, MAC filtering
|
Introduction to DIP switches
DIP Switch
|
State
|
Description
|
#1
|
ON
|
RSTP Disabled
|
OFF
|
RSTP Enable(Default)
|
#2
|
ON
|
Port VLAN Enable
|
OFF
|
Port VLAN Disable(Default)
|
#3
|
ON
|
SFP Port is 100M
|
OFF
|
SFP Port 100/1000M(Default)
|
#4
|
|
Function Reserve
|
NOTE: 1. RSTP switches to the ON position,which indicates RSTP is in disabled status.
2. VLAN switches to the ON position, indicating VLAN is enabled. All LAN ports can only communicate with the SFP uplinks when this option is enabled.
3. To take effect the DIP Switch function while the ethernet switch is in operation there is a need to reboot the Ethernet switch after tuning the DIP switch.
Physical Property
Protection grade
|
IP40 aluminum case
|
Cooling mode
|
Natural cooling, no fan design
|
Dimensions
|
120mm x 90mm x 35mm (L x W x H)
|
Installation mode
|
DIN trail/wall-mountable
|
Weight
|
350g
|
Working Environment
Operating Temperature
|
-20℃~70℃
|
Operating Humidity
|
5%~90% non-condensing
|
Storage
|
-40℃~85℃
|
Warranty
MTBF
|
500,000 hours
|
Defects Liability Period
|
3 year warranty, lifetime technical support
|
Certification Standard
EMI
|
EN55032 Class A, CISPR 32 FCC Part 15B Class A
|
EMS
|
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8
|
Collision
|
IEC60068-2-27
|
Drop
|
IEC60068-2-32
|
Vibration
|
IEC60068-2-6
|
Safety grade
|
EN60950-1
|

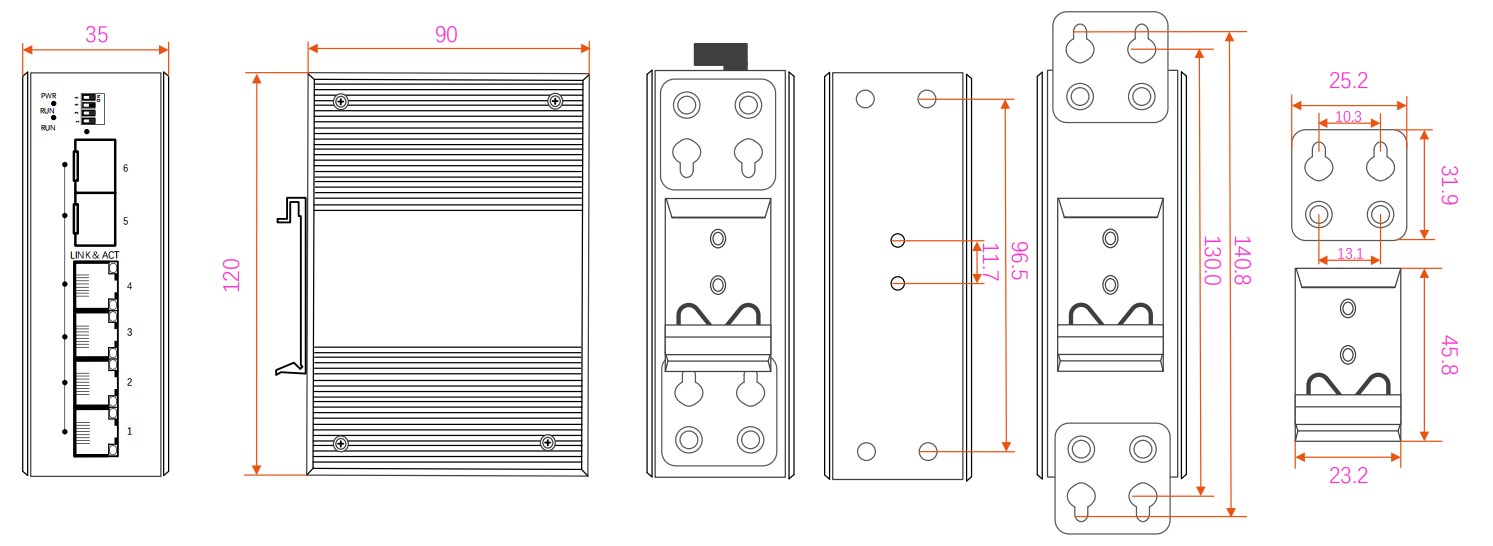

Managed industrial network switch dimensions (unit: mm)
Package List
Device
|
1x Industrial Ethernet Switch
|
Installation Kit
|
1x DIN-Rail Clip
2x Wall-Mount Kits
|
Documentation
|
1 x Quick installation guide
1 x Warranty card
1x Product notice
|
