4GE+2POTS+CATV+Wi-Fi Single Fiber GPON ONT
ONT BD-ONT-804GW has 1 PON port, 2 POTS port,four 10/100/1000BASE-T ports and one CATV output, support Wi-Fi function.

  Request price     Contact us

INFORMATION

         Brief Views

ONT BD-ONT-804GW (4GE+2POTS+RF+Wi-Fi) series is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability ,QoS guarantee ,comprehensive management and flexible networking construction, etc. ONT BD-ONT-804GW series is fully compatible with ITU-T G.984 technology standard.

It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm .It only needs one-core fiber to transmit data service.

ONT BD-ONT-804GW series has 1 PON port , 2 POTS port, four 10/100/1000BASE-T ports and one CATV output, support Wi-Fi function.

      Functional Feature

n Full compatible with ITU-T G.984

n Support two POTS

n Support four GE auto-adapting Ethernet ports

n Support one CATV output

n Support one 802.11 n/b/g WiFi port

n Support OMCI and TR069 for remote management

n Support Web for local management

n Support Auto-negotiation and MDI/MDIX

n Support the Ethernet interface rate, working mode and flows control

n Support loopback at UNI

n Support packet filtering and anti-illegal message attack protection

n Support performance statistics of Ethernet lines

n Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.

n Support DHCP Option60 reporting the location information of the Ethernet interface

n Support PPPoE+ for accurate subscribers identification

n Support H.248MGCP and SIP protocol

n Support IGMP Snooping

n Support AES-128

n CATV support turn on/off RF output remotely

     Product interface and LED definitions





Indicator

Description

1

PWR

Power status

On: The ONU is power on

Off: The ONU is Power off

2

WIFI

WIFI

BlinkingData is being transmitted

OnWi-Fi function Opens

3

TELn

Telephone port status

OnThe connection between the TEL port and the voice server has been set up

BlinkingThe voice service of the TEL port is established

OffThe connection between the TEL port and the voice server is not set up.

4

LAN1-4

LAN port status

On: Ethernet connection is normal

Blinking: Data is being transmitted through the Ethernet port

Off: Ethernet connection is not set up

5

LOS

GPON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal

6

PON

ONT Register

On: Success to register to OLT

Blinking: In process of registering to OLT

Off: Failed to register to OLT;

7

CATV

CATV status

OnCATV optical normal

OffThe CATV signals are not received

   Specification

Item

Parameter

Interface

Uplink Interface

1*GPON port, FSAN G.984.2 standard, Class B+

Downstream Data Rate2.488Gbps

Upstream Data Rate1.244Gbps

SC/PC single mode fiber

28dB Link loss and  30KM distance with 1:128

CATV Interface

1 RF output

Female F-Type Connector

POTS Port

2*RJ11 with 3REN

Max 1km distance

Balanced Ring, 55V RMS

Ethernet Interface

4*10/100/1000Mauto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

12V DC Power supply

Performance Parameters

PON Optical Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0
4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125
ɥm single-mode fiber

Data Transmission
Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

Business Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAGVLAN conversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support link detection

Network Management

Management Mode

Standard compliant OMCI interface as defined by ITU-T G.984.4

Support TR069 and WEB management

Management Function

Status monitor, Configuration management, Alarm management, Log management

Physical Features

Shell

Plastic casing

Power

External 12VDC/1A power supply adapter

Power consumption: <9W

Dimension and Weight

Item Dimension200mm(L) x 140mm(W) x 33mm (H)

Item weight0.5kg

Environmental
Specifications

Operating temperature: 0 to 50oC
Storage temperature: -40 to 85oC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 5% to 95%(Non-condensing)

   CATV

Item

Model

BD-ONT-804GW

BD-ONT-804GWL

BD-ONT-804GWA

Wavelength

1550 +/- 10nm

Optical return loss

>45dB

Input optical power

-15dBm0dBm

 -18dBm-9dBm

-18dBm0dBm

RF frequency

47MHz~1000MHz

RF output lever

84dBuV (@-5dBm@85MHz)

81dBuV (@-10dBm@85MHz )

78dBuV (@-12~-2dBm@85MHz)

CNR

>47dB (@-5dBm@ DS22 Channel)

>41dB (@-10dBm@DS22 Channel)

CSO

>60dBc (@-5dBm@ DS22 Channel)

>60dBc (@-10dBm@DS22 Channel)

CTB

>60dBc (@-5dBm@ DS22 Channel)

>60dBc (@-10dBm@DS22 Channel)

RF output return loss

>14dB

>12dB

RF impedance

75Ohm

AGC function

/

/

Support

    WIFI Features

=  Wi-Fi Specification IEEE 802.11n compliant, 2.4 GHz

=   Full IEEE 802.11b/g legacy compatibility with enhanced performance

=   Two-stream spatial multiplexing up to300 Mbps PHY data rates

=   Support multi-SSIDMaximum 4 SSID

=   Support automatic channel selection

=   Support hide SSID

=   Support wireless security of  64/128 bit WEP802.1xWPA and WPA2

Item

Parameter

Performance  parameters

Standard

IEEE802.11b/g/n

Frequency

2.400 ~ 2.500 GHz

Wireless data rate

IEEE 802.11b: 1,2,5.5,11Mbps

IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n: up to 200 Mbps

Modulation schemes

802.11g: 64QAM, 16QAM, QPSK, BPSK,   DSSS   802.11b: CCK, DQPSK, DBPSK   

HT20: 64 QAM, 16QAM, QPSK, BPSK

Channel

13*Channel, configurable to meet the standard of USA, Canada, Japan and China

RF receive sensitivity

802.11b: -96dBm @ 1 Mbps; -93dBm @ 2 Mbps;

-91dBm @ 5.5 Mbps; -88dBm @ 11 Mbps

802.11g: -90dBm @ 6 Mbps; -89dBm @ 9 Mbps;

-89dBm @ 12 Mbps; -867dBm @ 18 Mbps;

-83dBm @ 24 Mbps; -79dBm @ 36 Mbps;

-75dBm @ 48 Mbps; -75dBm @ 54 Mbps

802.11n: -96dBm @ 1 Mbps;-88dBm @ 11 Mbps;

-90dBm@6Mbps; -75dBm@54Mbps;

-86dBm@m0/20MHz;-69dBm@m15/20MHz;

RF Tx Power

•TX power out B mode @ 11 Mbps: 18dBm +/- 2

• TX power out G mode @ 54 Mbps: 16dBm +/- 2

• TX power 11n mode @ HT20: 16 dBm +/-2

Encryption Mode

64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2,   802.1x

Transmission distance

100m indoors coverage area

300m outdoors coverage area

(varying depending on the actual environment)

    Application

  Typical SolutionFTTH,FTTO, PON+EOC

  Typical BusinessINTERNET, VOICE, CATV, IPTV, VOD, IP Camera, Wi-Fi

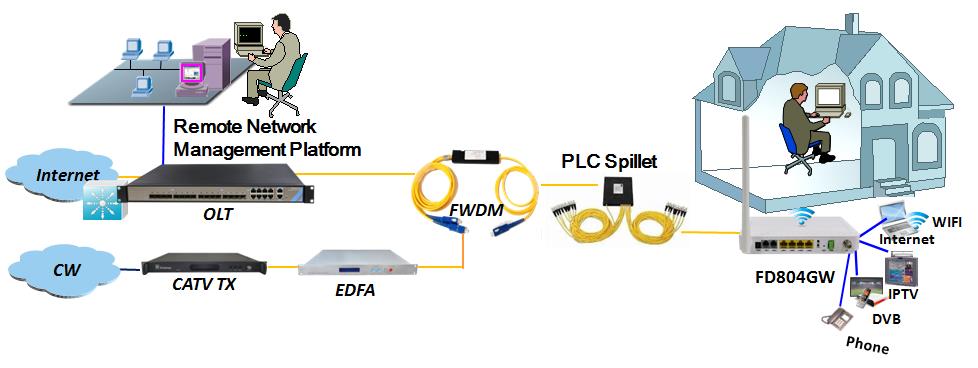

    Network Construction
