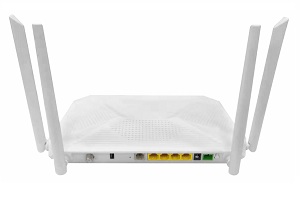

1GE+3FE+WIFI+CATV+POTS XPON ONU
1GE+3FE+WIFI+CATV+POTS XPON ONU

  Request price     Contact us

INFORMATION

1. Overview

n  BD-ONT-324RWT-H  is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by, The carrier-class FTTH application provides data service access.

n  BD-ONT-324RWT-H   is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.

n  BD-ONT-324RWT-H   adoptshigh reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X

n  BD-ONT-324RWT-H   is designed by Realtek chipset 9603C



2. Functional Feature

n  Support EPON/GPON mode and switch mode automatically

n  Support ONU auto-discovery/Link detection/remote upgrade of software

n  WAN connections support Route and Bridge mode

n  Route mode supports PPPoE/DHCP/ static IP

n  Support WIFI Interface and multiple SSID

n  Support POTS interface for VOIP Service

n  Support CATV interface for Video Service and control by OLT

n  Support QoS and DBA

n  Support port Isolation and port vlan configuration

n  Support  Firewall function and IGMP Snooping/Proxy multicast feature

n  Support  LAN IP and DHCP Server configuration

n  Support Port Forwarding and Loop-Detect

n  Support TR069 remote configuration and maintenance

Specialized design for system breakdown prevention to  maintain stable system

3. Hardware Specification



Technical item

Details

PON Interface

1 G/EPON port(EPON PX20+ and GPON Class B+)

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

Wavelength

TX: 1310nm, RX: 1490nm

Optical Interface

SC/APC Connector

POTS interface

1 FXS, RJ11 connector
Support: G.711/G.723/G.726/G.729 codec
Support: T.30/T.38/G.711 Fax mode, DTMF Relay
Line testing according to GR-909

LAN Interface

1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

CATV Interface

RF, WDM, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF output level: 78dBuV

AGC range: 0~-15dBm

MER: ≥32dB@-15dBm

Wireless

Compliant with IEEE802.11b/g/n,

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps,

2T2R,2 external antenna 5dBi,

Support: Multiple SSID

Channel: Auto

Modulation type: DSSS, CCK and OFDM

Encoding scheme: BPSK, QPSK, 16QAM and 64QAM

LED

12 LED, For Status of WIFIWPSPWRLOSPONLAN1~LAN4FXS Worn Normal(CATV)

Push-Button

3,For Function of Reset, WLAN, WPS

Operating Condition

Temperature: 0~+50

Humidity: 10%90%non-condensing

Storing Condition

Temperature: -30~+60

Humidity: 10%~90%non-condensing

Power Supply

DC 12V/1A

Power Consumption

≤6W

Dimension

155mm×92mm×34mmL×W×H

Net Weight

0.24Kg



4. Panel lights Introduction

Pilot Lamp

Status

Description

WIFI

On

The WIFI interface is up.

Blink

The WIFI interface is sending or/and receiving data (ACT).

Off

The WIFI interface is down.

WPS

Blink

The WIFI interface is securely establishing a connection.

Off

The WIFI interface does not establish a secure connection.

PWR

On

The device is powered up.

Off

The device is powered down.

LOS

Blink

The device doses not receive optical signals.

Off

The device has received optical signal.

PON

On

The device has registered to the PON system.

Blink

The device is registering the PON system.

Off

The device registration is incorrect.

LAN1~LAN4

On

Port (LANx) is connected properly (LINK).

Blink

Port (LANx) is sending or/and receiving data (ACT).

Off

Port (LANx) connection exception or not connected.

FXS

On

Phone has registered to the SIP Server.

Blink

Phone has registered and data transmission (ACT).

Off

Phone registration is incorrect.

Worn

(CATV)

On

Input optical power is higher than 3dbm or lower than -13dbm

Off

Input optical power is between -13dbm and 3dbm

Normal

(CATV)

On

Input optical power is between -13dbm and 3dbm

Off

Input optical power is higher than 3dbm or lower than -13dbm



5. Application

n  Typical SolutionFTTO(Office) FTTB(Building)FTTH(Home)

n  Typical BusinessINTERNETIPTVIP Camera WIFI VOIPCATV etc
