INFORMATION
Description

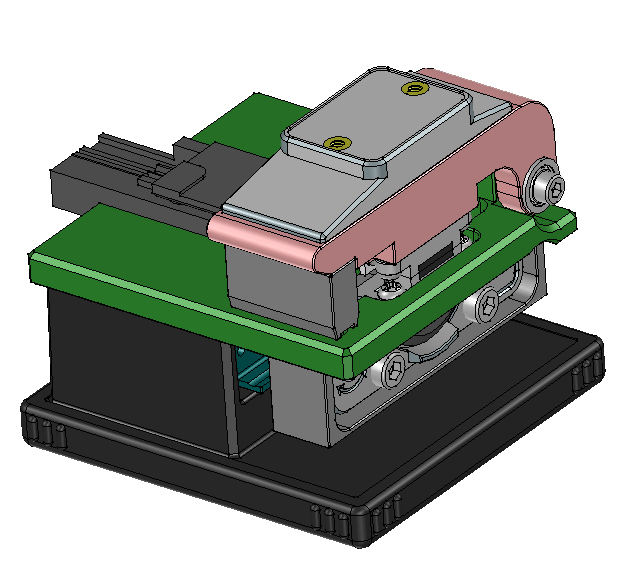

The BC-7S fiber cleaver is high precision at a low cost, suitable
for any job. Compact and ergonomic, precise and durable, the fiber cleaver is
perfect for all cleaving applications from Splice on Connectors to an emergency
fiber restoration. The standard FC-7S cleaves 250um and 900um fibers with a
3-step process that will fulfill any cleaving requirement. The fiber cleaver is
very popular in fiber construction project because of its high quality and good
price.
Specification
| Product
model |
Fiber
cleaver |
| optical
fiber cladding diameter |
125μm |
| Fiber
coating diameter |
0.25mm-0.9mm |
| Coated
outer diameter |
Single
core |
| The
length required to be removed before optical fiber cutting |
Fiber
cutting length ≥18mm |
| Fiber
cutting length |
5-20mm |
| Fiber
cutting angle |
≤0.8° |
| Blade
life |
48000 ( 1000times x 16 position x 3 high |
| Size |
63Wx65Dx60H(mm) |
| Weight |
280g(coffee
color)/180(black color) |
| Fxture |
Three
in one multifunction jip |
