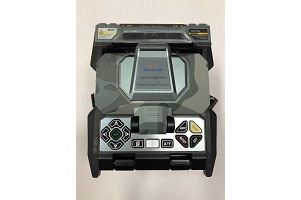

BD-FS-35 Handheld Fusion Splicer
The Fusion Splicer, with high performance price ratio, With smart appearance, reliable quality.

  Request price     Contact us

INFORMATION

Description

     The Fusion Splicer, with high performance price ratio, With smart appearance, reliable quality,this machine is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.


Features

  ●   Used for FTTH and ordinary fiber project

  ●   Core to core alianment by PAS technology

  ●   8 sec splicing time and 30 sec heat time

  ●   300 X or Y view, 150 X and Y view

  ●   Image storage function

  ●   Split screen display function

  ●   4.3 inch digital high quality LCD screen, observe X and Y view at same time

  ●   Three in one fixture, splicing single fiber, cable indoor and pigtail

  ●   Built in large capacity lithium battery of 200 times splicing and heating

  ●   All metal shell, high strength and beautiful appearance, small size and light weight, 1.6KG including battery




Specifications

  Model

Handheld Fusion Splicer BD-FS-35

Splicing Type

SM, MM, DS, NZDS

Splicing Loss

0.02dB(SM)0.01dB(MM)0.04dB(DS)0.04dB(NZDS)

Return Loss

>60dB

Splicing Mode

Manual, Half Auto, Auto

Fiber Alignment

Core to Core Alignment by PAS technology

Applicable Fiber

Cable indoor and 0.25mm,0.9mm fiber,   SC connector(option)

Splicing Time

≤9s

Heat Time

≤30s AUTO HEAT

Cleaved Length

816mm

Fiber Image/ Magnification

300/150   Image storage   Split screen display

View Display

4.3 inch digital high quality LCD screen

Tension Test

Standard 2N (option)

Heat Shrinkable Sleeve

60mm, 40mm and serials heat Shrinkable Sleeve

Battery Capacity

300 cycles splicing and heating,  3 hours charging time

 ( splicing and charging at same time)

Battery Life

Cycling charge 300-500 times, easy to replace battery

Electrodes Life

3000, easy to replace electrodes

Power Source

≤20W

Interface

USB   Convenient data download and software update

Construction Lighting

Built in high brightness, wide range of lights, easy to operate at night

Power supply

Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A

Operating Condition

0-5000m above sea level, Temperature: -10-60℃,

Humidity:095%RH (No dew)

Weight

1.6KG (including battery), 1.1KG (excluding battery)

Dimension (LxWxH)

200mm(L)×130mm(W)×98mm(H)

Standard Configuration

No

Name

Qty

1

 Fusion Splicer

1 set

2

 Fiber Cleaver

1 pc

3

 Fiber Stripper

1 pc

4

 AC Adaptor

1 pc

5

 Li Battery5200mAh

1 pc

6

 Charger

1 pc

7

 Spare Electrodes

1 pair

8

 Cooling Tray

1 pc

9

User Manual

1 pc

10

Carrying Case

1 pc

Related Video: how to restore the fiber fusion splicer to factory setting?
