INFORMATION

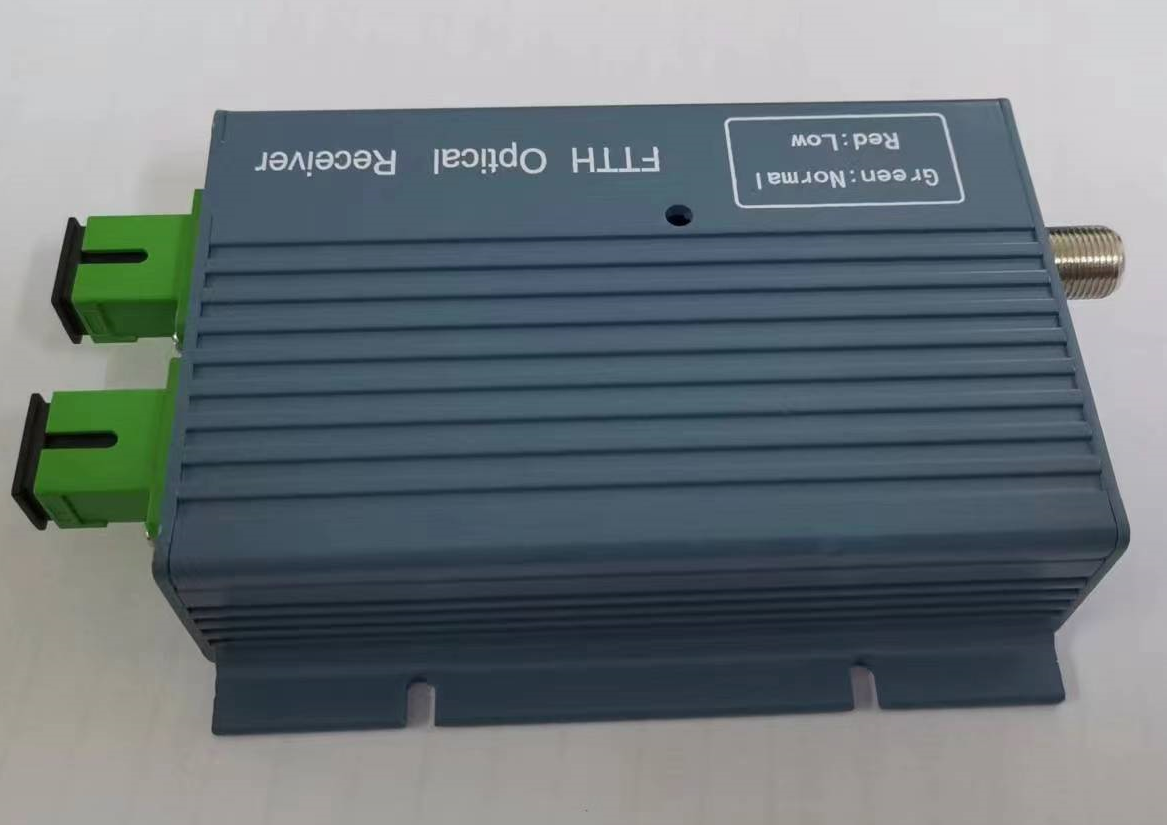

The optical receiver is the featured product that we specially designed for FTTH-Fiber to the Home network structure. The Passive CATV Optical Receiver is integrated with WDM. With small shell, compact and reasonable internal circuit structure and excellent performance indicators. It is the first choice for residential area and home fiber optic network.
Feature
Ø High responsivity PD with excellent CNR at low optical input power
Ø Built-in WDM, single-fiber to the home (1490/1310/1550nm)
Ø Using GaAs MMIC, excellent performance
Ø Zinc alloy shell
Specifications
|
Unit
|
indicator
|
Optical parameters:
|
Input optical power
|
dBm
|
-15～0
|
Reflection loss
|
dB
|
＞45
|
Received light wavelength
|
nm
|
1310～1550
|
Input optical interface
|
|
SC/APC-SC/APC
|
Link performance:：
|
C/N
|
dB
|
≥51
|
C/CTB
|
dB
|
≥65
|
C/CSO
|
dB
|
≥62
|
RF parameters:
|
Frequency Range
|
MHz
|
47～1000
|
In-band flatness
|
dB
|
1.5
|
Output level
|
dBμV
|
50（-10dBm test)
60（-5dBm test)
64（-3dBm test)
70（0dBm test)
|
RF output impedance
|
Ω
|
75
|
Mer
|
dB
|
33（-10dBm test)
|
dB
|
37（-5dBm test)
|
dB
|
37（-3dBm test)
|
dB
|
37（0dBm test)
|
Order information
BD-OR-WDM-M-P
|
Ftth optical receiver, WDM built-in, 1490/1310/1550nm, alloy case
|
