10G Fiber Converter (3R Repeater)
The 10G Fiber Converter is protocol-independent with dual XFP or SFP+ ports.The device can be used as 10G fiber mode mode or fiber repeater to extend the 10G network distance.

  Request price     Contact us

INFORMATION

Description:

The 10G Fiber Converter is protocol-independent with dual XFP or SFP+ ports, the 10G  fiber converter can provide conversion between different wavelengths or single-mode and multi-mode fiber, single-mode to single-mode fiber or multi-mode to single-strand single-mode fiber.

The device can be used as 10G fiber mode mode or fiber repeater to extend the 10G network distance

The 10G device support SDH/SONET STM-64/OC-19210G fiber channel10G Ethernet etc and can be applied in Telecommunication room, R&D laboratory, Data center or even 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.

The 10G fiber converter can be used as standalone device with external power or used as plug in card used in BD10Chasiss.


Application:

10Gbase-LAN10Gbase-WAN


Features

   ●   Support 2U Rack16 Slots and independent use

   ●   Support network management Web SNMP, Console

   ●   Support in-band management

   ●   Support ITUT prescribed DWDM/CWDM wavelength

   ●   Optical signal regeneration: 3R ( Re-amplify, Reshape, and Retime the signal ) ensures that there is a quality link at 10 Gigabit speeds.

   ●   Support Jumbo Frame

   ●   Transparent Transpor and very low delay

   ●   Support DMI function for SFP+/XFP fiber module

   ●   Support Loopback test function

   ●   Support PRBS Generator and checker

   ●   Support hot plugging

   ●   Full State Led display

   ●   Easy installation


Technical Information:



Performance Data



Technical Indexes

 Equipment function      3R Repeater
 Transmission Speed      10Gb/s9.95Gb/s-11.35Gb/s
 Protocols      10Gbase-R10Gbase-LRM
 Access Type       IEEE802.3ae 10G LAN/ 10G WAN


Interface Type

      Type A:   SFP+ To/From SFP+

Type B:  SFP+ To/From XFP

Type C:  XFP To/From XFP



Transmission Distance

      Up to SFP moduleMax 40Km

Up to XFP module Max 80Km



power requirement

      Rack-mountable : AC 85 220V OR DC -48V

Standalone: AC 220V OR -48V

Power consumption: ≤4W



Work Environment

      Operating Temp: 0~ 50

Storage Temp: -10~ 70

Humidity: 5%~90% non-condensing

 Dimension       Card 11.5mm W× 78mm D

Standalone 156mm W×128mmD×32mmH

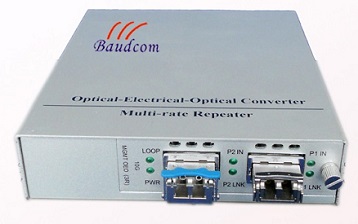

10G Optical-Electrical-Optical Converter (3R REPEATER)















Questions about the 10G fiber repeater


Question: Can I input 2Gbps signal into the 10G optical fiber repeater?

Answer: The 10G fiber repeater can only support 9.95Gb/s-11.35Gb/s.If your rate is 2Gbps,you can choose our 2.5G fiber repeater.



Ordering information
