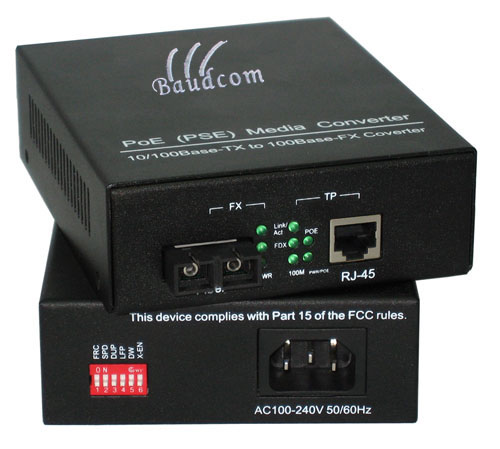

10/100M POE Fiber Media Converter: The POE fiber media converter can provide one to four POE ethernet port,supporting LFP function.

INFORMATION

Overview

BD-100M-POE is a 10/100Base-TX to 100Base-FX media converter, which allows two types of network segment to be connected easily. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a

Power Sourcing Equipment (PSE) which combines data transfered over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters / 330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fauit Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.

Features

● 10/100Base-TX UTP to 100Base-FX fiber media convertion

● IEEE802.3af PoE PSE compatible

● 9K bytes packet at cut-through mode

● Built-in AC/DC power supply

● Over-current protection

● choice of SC, BiDi or LC connectors for multimode and singlemode

● DIP switch to set different configurations

● LFP (Link Fault Pass-through) support

100Base-FX Optical interface:

● Connector: SC,FC or ST are optional

● Wavelength: 1310nm,1550nm or 850nm(can be chosen by customer)

● Optical fiber category:

● single-mode 8.3/125, 8.7/125, 9/125, 10/125um

● multi-mode 50/125, 62.5/125, 100/140um

● multi- mode connection: transmitting range can reach 5 kilometers as farthest;

● single-mode connection: transmitting range can reach 120 kilometers.

10/100Base-TX：

● Connector: UTP RJ45 connector

● Data Rates:

● 10/100 Mbps (802.3 10Base-T/802.3u 100Base-T)

● 100Mbps (100Base-FX)

Power over Ethernet Output:

● Pin Assignment and Polarity:4/5 (V+),7/8 (V-)
● Output Power: please refer to ordering information
● Efficiency: 75% min
● Short circuit protection: auto recovery
● Over current protection: auto recovery

Optical Specification :

Fiber connector	SC/ST	SC	SC	SC
type	multimode	Single mode	Single mode	Single mode
wavelength	850/1310nm	1310nm	1310nm	1310nm
Transmission distance	2km	25km	40km	60km
TX send power(min)	-19.0dBm	-15dBm	-9.0dBm	-4.0dBm
TX send power(max)	-12.0dBm	-9.0dBm	-5.0dBm	0dBm
Receive sensitivity	< -30dBm	< -30dBm	< -33dBm	<-36dBm
Link Budget	11.0dBm	15.0dBm	24.0dBm	32.0dBm

Dimension 95mm(L)x70mm(W)x26mm(H)

Environment condition

Operating temperature: 0C~+55 C

Storage temperature: -20 C~+70 C

Relative temperature: 95%

Power supply

Input voltage:AC220V, AC100V~AC240V

Input frequency: 47 Hz to 63 Hz

Ordering Information:

Part Number	Supported Standard	Output Voltage	Output Current	Output Power	Remark
BD-100M-POE	IEEE 802.3af	48V	0.54A max	25W max	default
BD-100M-POE-A	IEEE 802.3af	56V	0.54A max	30W max	optional
BD-100M-POE-B	Non-standard	48V	0.60A max	30W max	optional
BD-100M-POE-C	Non-standard	24V	1.20A max	30W max	optional

Ordering information

Related Products

Fast Ethernet Media Converter

fast media converter,10/100M ethernet fiber media converter

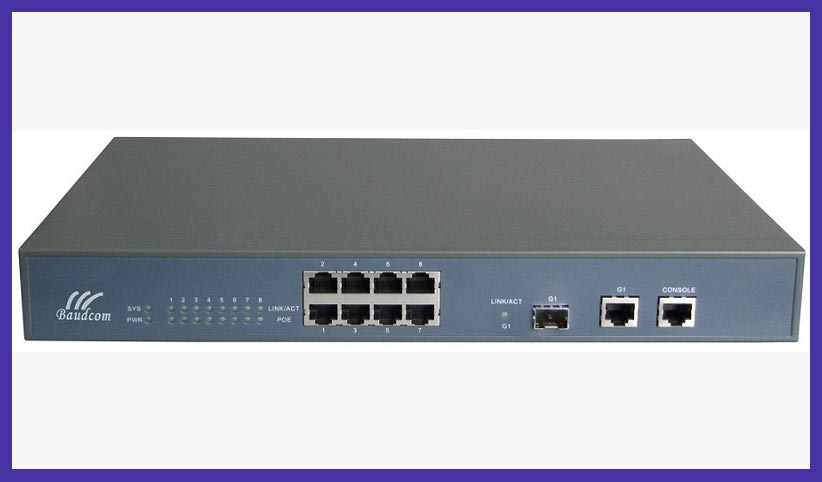

8ports Fast Ethernet POE Switch
