INFORMATION
Features
● Low Insertion Loss
● High Isolation
● Low PDL
● Compact Design
● Good channel-to-channel uniformity
● Wide Operating Wavelength:
From 1260nm to 1620nm
● Wide Operating Temperature:
From -40 degree to 85degree
● High Reliability and Stability
2. Applications
CWDM System
PON Networks
CATV Links
3. Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
Specifications
CWDM Mux/Demux Module
|
Parameters
|
1x2
|
1x4
|
1x8
|
1x16
|
|
Center Wavelength (nm)
|
ITU, ITU+1
|
|
|
ITU±6.5
|
|
Operating Wavelength (nm)
|
1460~1620 or 1260~1620
|
|
Channel Space (nm)
|
20
|
|
Fiber Type
|
SMF-28e or customer specified
|
|
IL (dB) (P/A Grade)
|
0.7/1.0
|
1.4/1.7
|
2.0/2.5
|
3.5/4.0
|
|
Isolation (dB)
|
Adjacent Channel
|
30
|
|
Non-Adjacent Channel
|
50
|
|
Ripple (dB)
|
0.3
|
0.4
|
0.5
|
0.5
|
|
PDL (dB)
|
0.2
|
|
PMD (ps)
|
0.1
|
|
RL (dB)
|
45
|
|
Directivity (dB)
|
50
|
|
Maximum Optical Power (mw)
|
500
|
|
Operating Temperature (℃)
|
-40～85
|
|
Storage Temperature (℃)
|
-40～85
|
|
BOX Package (mm)
|
100*80*10
|
140*115*18
|
|
LGX Package
|
1U, 2U
|
|

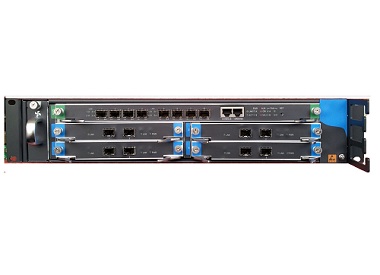

19’’ Rack mount Package
|
1U
|
Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.
Ordering information
