8E1Analog Voice Gateway / IPPBX
Analog Gateway/IPPBX locates at the interface between PSTN and IP to achieve the conversion between FXO/FXS and VoIP SIP,meanwhile complete the media stream transformation between the bearer channel of PSTN and IP.

  Request price     Contact us

INFORMATION

Overview:

Analog Gateway/IPPBX locates at the interface between PSTN and IP to achieve the conversion between FXO/FXS and VoIP SIPmeanwhile complete the media stream transformation between the bearer channel of PSTN and IP.

Application:

Used for IPCC, IP Dispatch, Unify Communication, VoIP network, operators, and so on.

Specification:

· Signaling: SS7, PRI, R2, CAS, Q.SIG, V5.2, and DPNSS;

· VoIP Protocol: SIP and H.248;

· Codec: G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726-16G.726-32GSMGSM-EFRARMARM-WB, ILBC;

· Fax Protocol: T30, T38, pass through;

· Network Protocol: IP, NAT, ICMP, ARP, HTTP, BOOTP, FTP, TFTP, DHCP, PPPOE, SNMP, Diff-Serv;

· Advanced Voice Processing Technology: Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Echo Cancellation, DTMF, Caller ID, and Flexible input/output Gain Control.

Physical Capacity and Specification:

Item

BD-voip-900fxs/fxo

Analog fxs/fxo Port

0

E1 port (PCM)

0-8 E1

VOIP IP Channels

256

SIP Subscribers

16-1024

Ethernet Interface

2 (10/100/1000M Base-T

CONSOLE

1 (RS232 port

SIP Compatibility

CISCO, Siemens, AVAYA, Huawei, ZTE, etc.

Input voltage

DC -48V or AC 110-240V

Power

30W

Telephone line transmission distance

10KM

Machine Dimension

480mm*286mm* 44mm (1U)

Weight

4KG

Weight Work Environment

050, Less 80%

Application Topology:

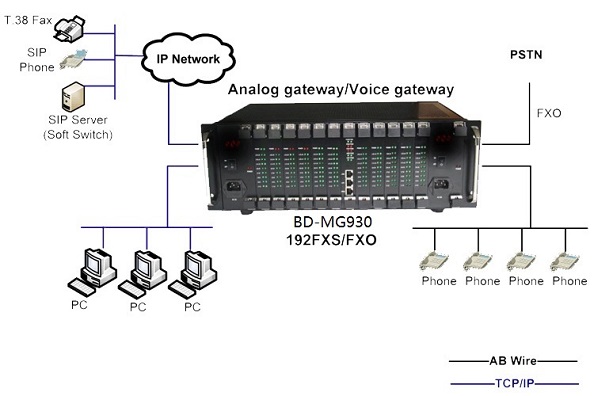

1.   Basic application

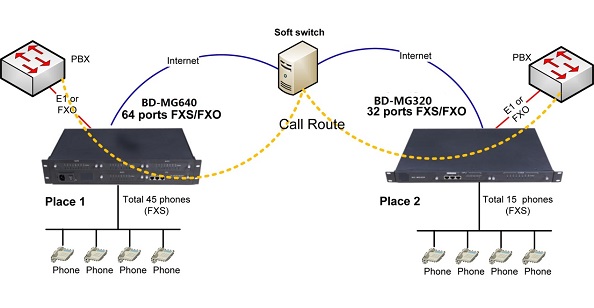

2.   Connection for two different places/offices via FXS VoIP Gateway

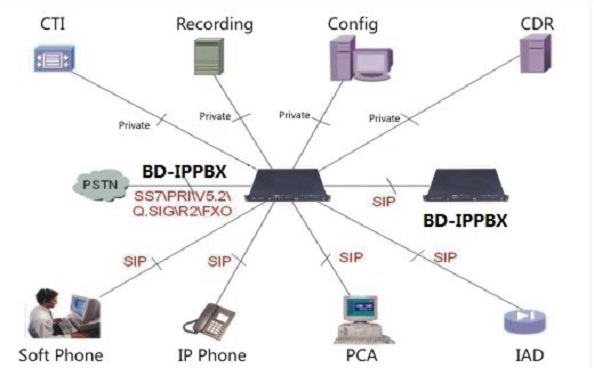

3.   Function and Features of IPPBX

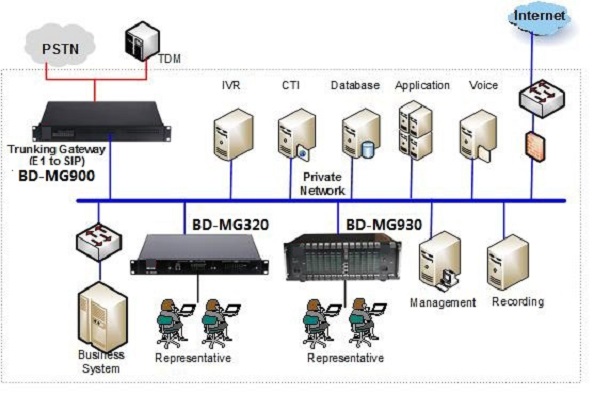

4.   Solutions for IP call center

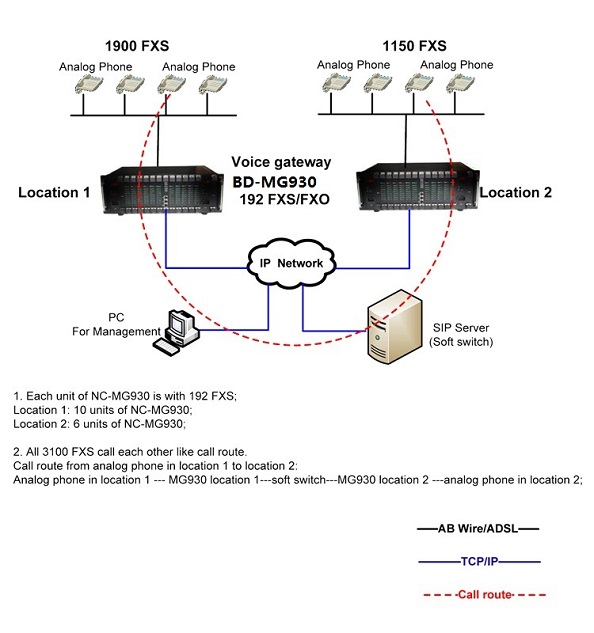

5.Example Application



Question: Does the 8E1 analog VOIP support SS7? If so,how many SS7 links?

Answer: Yes.one E1 for one channel SS7 link,so the device can support maximum 8 SS7 links.
