INFORMATION
General

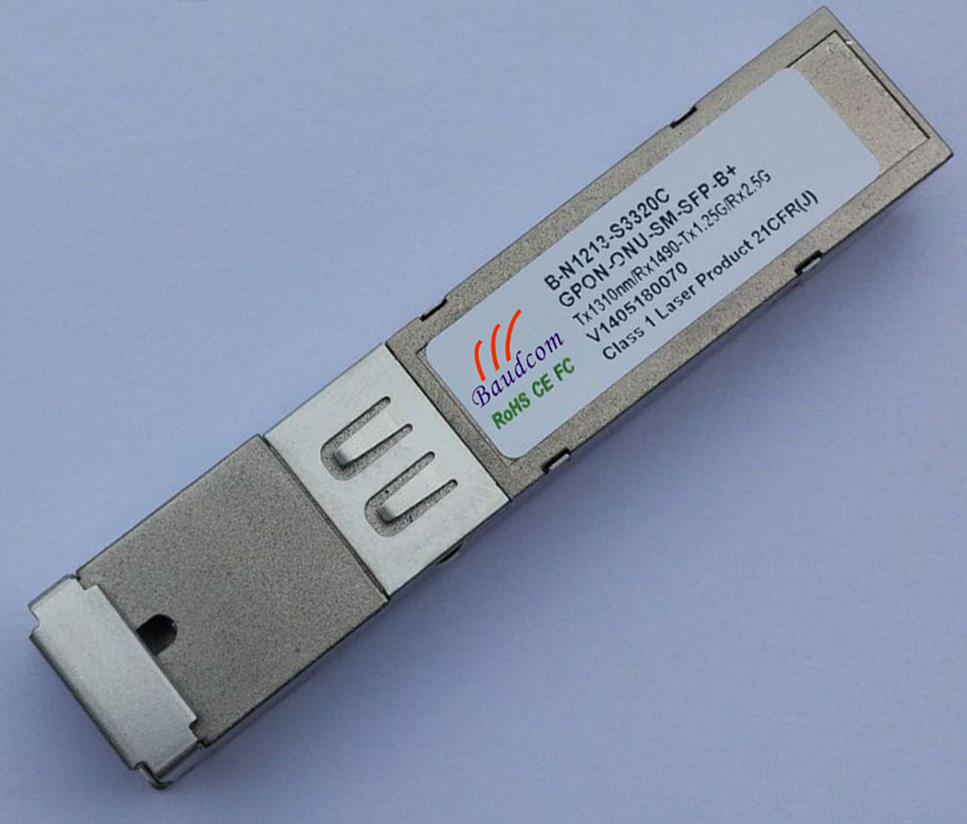

The B-N1213-S3320C transceiver with SFP package supports typically 1.244 Gbps Tx,2.488 Gbps Rx Asymetric Data Rate for GPON ONU application up to 20km transmission distance, it’s designed meeting with ITU-T G.984.2 Class B+. SC rececptacle or SC/PC pigtail is for optical interface.
Product
Features
l BiDi SFP Single Mode Transceiver
l SC receptacle or with SC/PC or SC/APC pigtail is optional
l Comply with ITU-T G.984.2 Class B+
l Compliant with SFF MSA-2000 And SFF-8472 V10.3
l Single +3.3 Power Supply
l LVPECL Differential Data Inputs And CML Data Outputs
l LVTTL Signal Detection Output And LVTTL Burst Control
l Complies with Telcordia (Bellcore) GR-468-CORE
l 1310 nm Burst Mode Transmitter and 1490 nm Continuous Mode Receiver
l 1.244 Gbps DFB Laser Diode, 2.488 Gbps APD-TIA Receiver
l Maximal reach 20km
Product Applications
l GPON ONU For P2MP Application
Performance Specifications
Recommended Operating Conditions
|
Parameter
|
|
Symbol
|
Min.
|
Typical
|
Max.
|
Unit
|
|
|
|
|
|
|
|
|
Power Supply Voltage
|
Vcc
|
3.135
|
3.3
|
3.465
|
V
|
|
Operating
|
Case
|
Tc
|
0
|
-
|
70
|
°C
|
|
Temperature
|
|
|
-40
|
-
|
85
|
|
|
Total Supply Current
|
-
|
-
|
-
|
350
|
mA
|
|
|
|
|
|
|
|
|
Optical Specification
Transmitter
|
Parameter
|
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Data Rate
|
|
DR
|
-
|
1.244
|
-
|
Gbps
|
|
Optical Central Wavelength
|
|
l
|
1260
|
1310
|
1360
|
nm
|
|
Spectral Width (-20dB)
|
|
Dl
|
-
|
-
|
1
|
nm
|
|
Side Mode Suppression Ratio
|
|
SMSR
|
30
|
-
|
-
|
dB
|
|
|
|
|
|
|
|
|
|
Average Optical Output Power
|
|
Po
|
0.5
|
-
|
5
|
dBm
|
|
Extinction Ratio
|
|
Er
|
9
|
-
|
-
|
dB
|
|
Tx Burst ON Time
|
|
Ton
|
-
|
-
|
12.86
|
ns
|
|
|
|
|
|
|
|
|
|
Tx Burst OFF Time
|
|
Toff
|
-
|
-
|
12.86
|
ns
|
|
Rise/Fall Time
|
|
Tr/Tf
|
-
|
-
|
250
|
ps
|
|
Average Lauched Power
of
|
Off
|
Poff
|
-
|
-
|
-45
|
dBm
|
|
Transmitter
|
|
|
|
|
|
|
|
Output Eye
|
|
Compliant with ITU-T G.984.2
|
|
|
|
|
|
|
|
|
|
|
Receiver
|
|
|
|
|
|
|
|
Parameter
|
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Data Rate
|
|
DR
|
-
|
2.488
|
-
|
Gbps
|
|
|
|
|
|
|
|
|
|
|
|
Operate Wavelength
|
|
-
|
1480
|
-
|
1500
|
nm
|
|
Sensitivity
|
|
Pr
|
-
|
-
|
-28
|
dBm
|
|
|
|
|
|
|
|
|
|
Saturation
|
|
Ps
|
-8
|
-
|
-
|
dBm
|
|
SD De-assert Level
|
|
-
|
-45
|
-
|
-
|
dBm
|
|
SD Assert Level
|
|
-
|
-
|
-
|
-28
|
dBm
|
|
|
|
|
|
|
|
|
|
SD Hysteresis
|
|
-
|
0.5
|
-
|
6
|
dB
|
|
Optical Return Loss
|
|
-
|
-
|
-
|
-12
|
dB
|
