PoE Switch with 8x 10/100M Ports and 2x Gigabit Ports
This BD-POE31108PG switch provides a network point for power supply and data transmission. All the 8 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 8.8Gbps interface, among which 1-8 ports can provide standard IEEE 802.3af power supply. Due the advanced self-sensing algorithm supply power for IEEE802.3af terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected. In short, The POE31108PG features simple and reliable design, automatic identification PoE requirements,

  Request price     Contact us

INFORMATION

Product Description

This BD-POE31108PG switch provides a network point for power supply and data transmission. All the 8 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 8.8Gbps interface, among which 1-8 ports can provide standard IEEE 802.3af power supply. Due the advanced self-sensing algorithm supply power for IEEE802.3af terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected. In short, The POE31108PG features simple and reliable design, automatic identification PoE requirements, This cost-effective BD-POE31108PG provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.


Features

   ●   Can supply power to network surveillance cameras that without PoE function

   ●   8x 10/100 Mbps auto-sensing RJ45 ports

   ●   Supports port auto-flip (Auto MDI/ MDIX)

   ●   Uplink port: 8.8Gbps interface

   ●   Maximum PoE power: 130W (all PoE ports, 1 to 8 ports)

   ●   Maximum power per port: 15.4W

   ●   Adopts store-and-forward architecture

   ●   All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed

   ●   Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall

   ●   Built-in 1U rack power supply series, easy to place it into standard mounting brackets


Technical Specification

Product Name

PoE Switch with 8x 10/100M Ports and 2x uplink RJ45 Ports

Product Model

BD-POE31108PG

Connector

8x 10/100M copper cable RJ45 PoE ports(all ports support MDI/MDIX),

2x Gigabit Uplink RJ45 ports

Transfer Mode

Store-And-Forward

Network Medium

10BASE-T: Cat3/4/5 UTP(≤100 meter);

100BASE-TX: Cat5 or more UTP(≤100 meter)

Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)

Performance Specifications

Bandwidth: 8.8Gbps (non-blocking)
Network Latency (100 to 100M bps): maximum delay less than 20 microseconds
Packet Buffer Memory: 2.75M
Address Database Size: 4K
MTBF: 190,000 hours (about 21 years)

Network Protocols and Standards

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af

LEDs Status

System: power supply;
Every Port: connecting, PoE working status

Power

Maximum PoE switch power:130 W
PoE port power:15.4 W(1
8 port)
Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

Dimensions/Weight

Dimensions: 279x210x44mm
Weight: 1.61kg

Working Environment

Operating Temperature: -20 ° ~ 75 ° C;
Storage Temperature: -20 ° ~ 75 ° C;
Humidity: 10% ~ 90%, non-condensing;
Storage Humidity: 10% ~ 95%, non-condensing;
Working Altitude: 3000 m (10,000 ft);

Storage Altitude: 3,000 m (10,000 ft)

Radiation

CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B

Safety

CE Mark ,commercial
CE/LVD EN60950

Warranty

1 year warranty(2 years for power adapter)

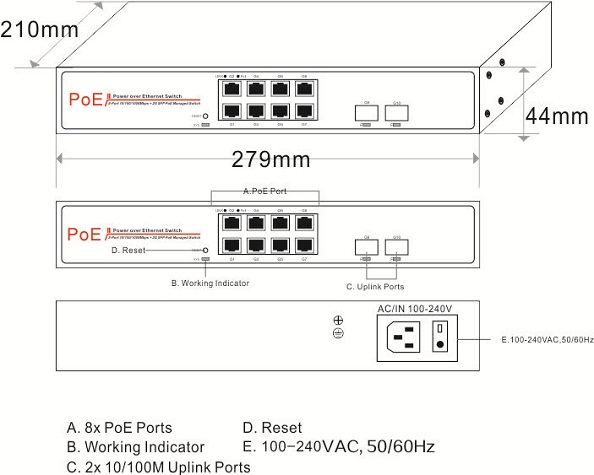

Product Dimension Display:

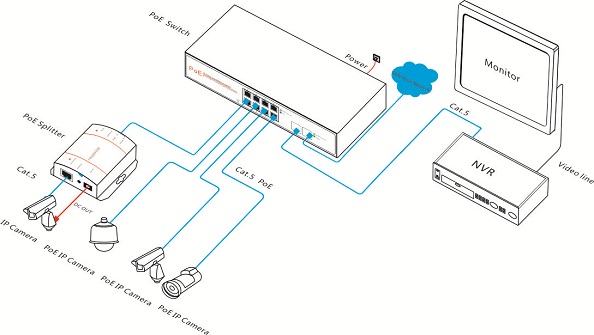

Product  Usage Display
