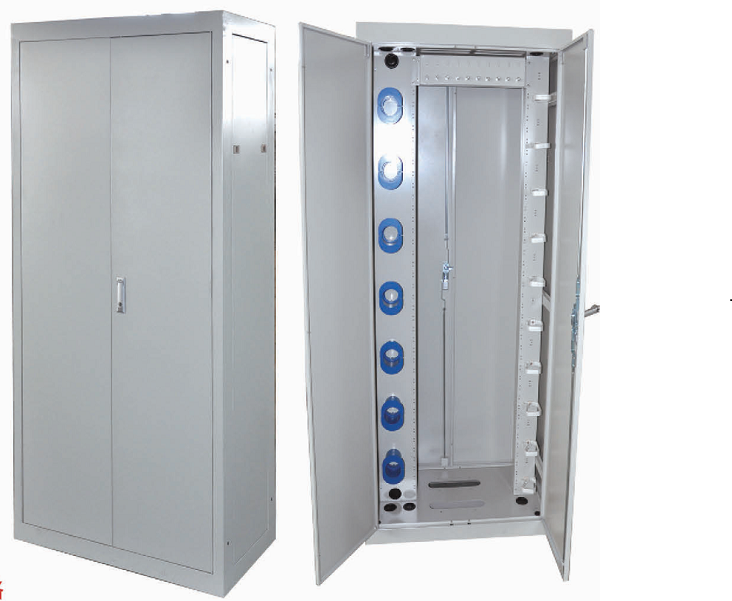

Rack ODF Central Optical Distribution Frame
BD-GPX-04 ODF has adopted integral splice and distribution module with electro static spray on the whole shape, so it is of beautiful appearance, compact structure and high density

  Request price     Contact us

INFORMATION

Description

BD-GPX-04 ODF has adopted integral splice and distribution module with electro static spray on the whole shape, so it is of beautiful appearance, compact structure and high density. This product is suitable for local port or optic distribution port in the optic fiber net. The equipments in the frame are designed modularly, equipped arbitrarily and installed easily. There are several types of accessories that prevent the fiber from unexpected damage. This product carries out the YD/T778-2006 standard

Features

It is whole front operation, which can save space in engine room.

Support kinds ODF, 12/24/48/72/96Cors ODF unit.

The frame is made of high-quality strong steelplate, with electro static spray on the whole shape,and of beautiful appearance.

The distribution and exchange of fiber is compatible for whole front operation or whole back operation,which the customers can choose either type. The fix, stripping, grounding of cable can be made together or separately at each son frame.

The frame has double doors at the front with two removable side plank, which is easy to open, disassemble, put side-by-side or back-to-back.

The management of jumping pigtail is very clear to settle.

The splicing marks and optic line marks are clear and integrate, and easy to operate.

There is enough fiber storage space, which can ensure the fiber bending radius is more than 40mm. at any position.

The frame has perfect reliable grounding system.

Applications

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Compliance

Telcordia GR-1209-CORE-2001

Telcordia GR-1221-CORE-1999

RoHS



Specifications

· Environmental Temperature: -5°C~+45°C

· Relative Humidity: ≤85% (+30°C)
· Air Pressure: 70~106KPa

· Voltage Resistance between High Voltage Protection Grounding and Rack: ≥3000V(DC), 1 min no puncture, no arc-over
· Insulation Resistance between High Voltage Protection Grounding and Rack: ≥1000MΩ/500V (DC)

·Flame Retardant: Standard GB/T5169.7—1985 compliant

·YD/T778-2006 National Technical Standard of Optical Distribution Frame compliant
