INFORMATION
Features
● Precise lengths free of all burrs and sharp
edges
● Heat-bonded assembly
● Choice of lengths and diameters
● Sleeves feature clear outer tube for viewing
fiber color
● Slim sleeves feature reduced diameter to fit
more finished product in splice trays
Applications

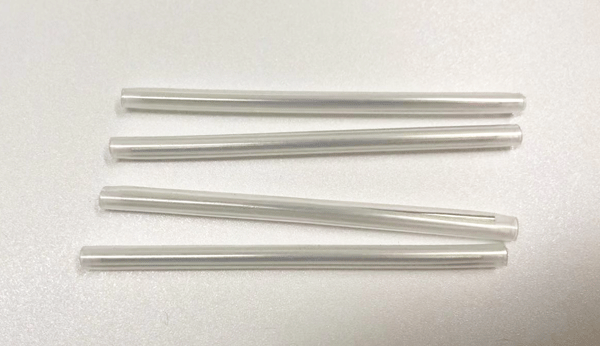

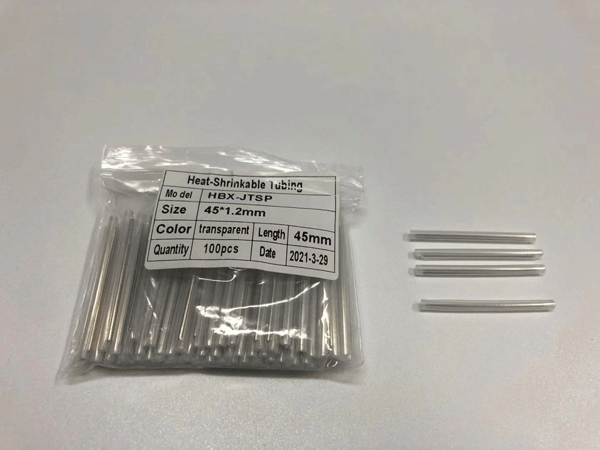

Baudcom Splice
Sleeves, available in standard and slim styles, are designed with a
stainless-steel strength member, polyolefin copolymer inner tube, and
polyolefin outer tube for reliable fiber alignment during shipping, handling,
and installation. Use them with Leviton Splice Trays to provide maximum
protection from shock and vibration.
Performance Specifications
SPECIFICATION
Fiber Splice Sleeves shall meet the requirements
for Bellcore GR-1380 specifications. Outer tubing shall meet MIL-I-23053/5
Class 2 requirements. The sleeves shall feature a stainless-steel strength
member, polyolefin copolymer inner tube and polyolefin outer tube with precise
cut lengths and smooth ends. Sleeves shall be available in standard, slim,
mini, and micro styles.
STANDARDS COMPLIANCE
Outer tube
of the splice sleeves meets MIL-I-23053/5 Class 2.
Standard style sleeves meet Bellcore GR-1380 specifications.
PHYSICAL SPECIFICATIONS
| Outer Tube
|
Polyolefin
|
| Working Temperature
|
-55° C to 135° C (-65° F to 275° F)
|
| Ultimate Strength
|
220 kg/cm3
|
| Elongation
|
650%
|
| Specific Gravity
|
95° C (203° F)
|
| Water Absorption
|
0.05%
|
| Minimum Shrink Temp
|
95° C (203° F)
|
| Fungus Resistance
|
Inert
|
| Solvent Resistance
|
Good
|
| Acid Resistance
|
Excellent
|
| Inner Tube
|
Polyolefin Copolymer (Ethylene-Vinyl Acetate)
|
| Ultimate Strength
|
200kg/cm3
|
| Elongation
|
700%
|
| Melting Point
|
80° C (176° F)
|
| Specific Gravity
|
0.93
|
| Strength Member
|
302 Stainless Steel with rounded and polished ends
|
| Shrink Time* Standard
|
90 seconds
|
| Shrink Size Standard:
|
2.9 mm
|
| Slim:
|
2.5 mm
|
| Ribbon:
|
4.3-5.1 mm
|
*Shrink
times vary with heater style and ambient temperature.
