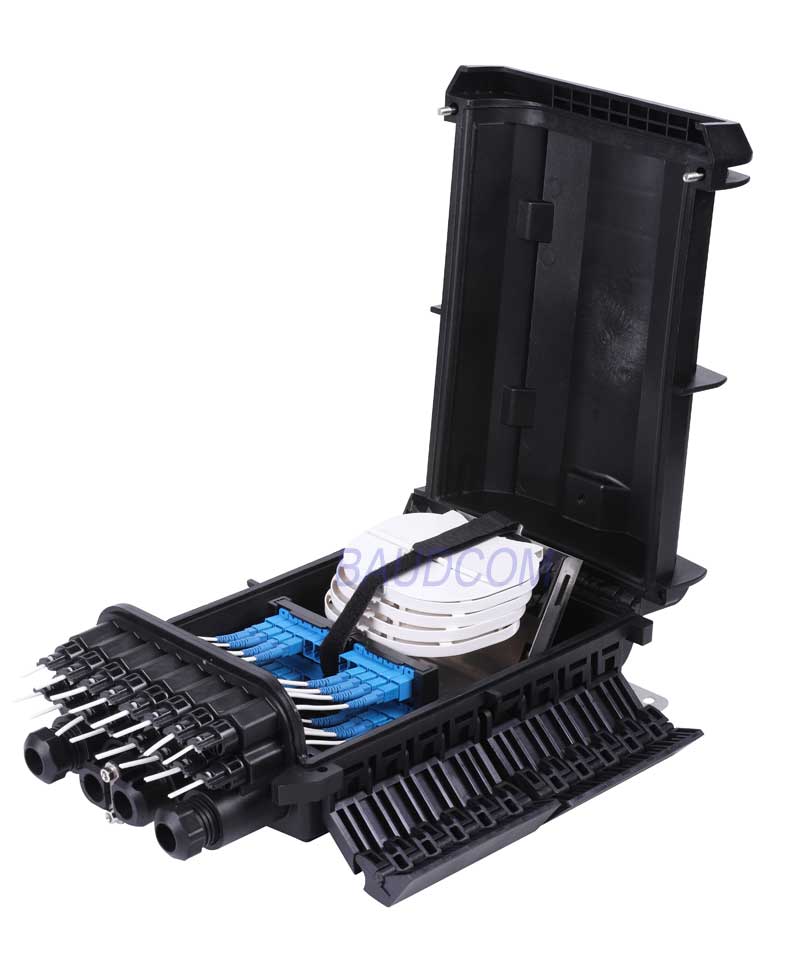

16core Fiber Distribution Terminal Box
16core Fiber Distribution Terminal Box with sperated tray, suitable space, easy for operation

  Request price     Contact us

INFORMATION

Description

BD-FTC-16B Fiber distribution terminal box  can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements.  The fiber access terminal distribution box also call fiber distributor box, fiber terminal box.

The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.It can help splicing, splitting, storage and management with suitable space.

BD-FTC-16B is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function.

Features:

   ●   The body is made of high quality engineering plastic with good strength;

   ●   With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments (Pic#1 for details);

   ●   With the independent rubber sealing plug for drop cable,  better waterproof performance( Pic#52for details);

   ●   With independent design, the box can be installed and maintained easily,

   ●   the fusion and termination are completely separated ( Pic#3 for details);

   ●   The drop leaf can be installed 2 pcs of 1*8 tube splitter ( Pic#4 for details);


Picture for reference:

fiber terminal box lock

fiber access terminal closure rubber

Pic#1

                         Pic#2

 fiber access terminal closuer seperated

    fiber access terminal closuer splitter

Pic#3

                         Pic#4


Specification:




Model No.

BD-FTC-16B

Color

Black

Capacity

16cores

Protection Level

IP55

Material

PP+Glass Fiber

Flame retardant performance

Non-flame retardant

Dimension(L*W*D,MM)

380*243*130

Splitter

Can be with 2x1:8 tube splitter

The dimension diagram:(mm)





Ordering information


Related Products

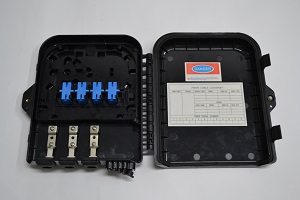

FTTX application 8Core fiber termination box

BD-FTB-8B fiber termination box is able to hold up to 8 subscribers.

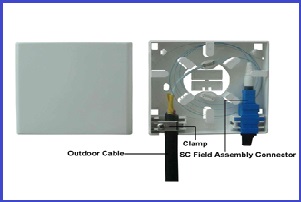

FTTH Terminal Box
