FTTH Terminal Box
FTTH Terminal Box, Fiber optical Termination box, with cable clamp, for Ф8~Ф10.5mm outdoor cable, for 1 piece of SC or duplex LC adaptor, without adaptor or pigtail

  Request price     Contact us

INFORMATION

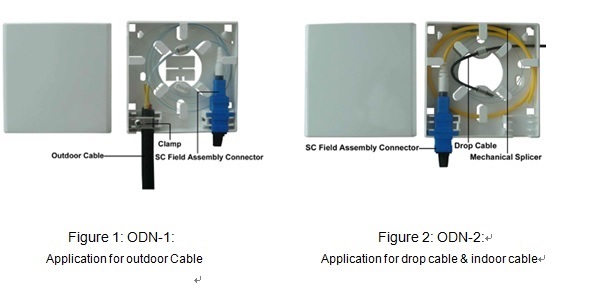

FTTH terminal box

FTTH Terminal Box Specification:

Model

ODN-1

ODN-2

Applicable Cable

2.0×3.1mm drop cable & indoor cable

Ф8~Ф10.5mm outdoor cable

Capacity

1 fiber (SC) or

2 fibers (duplex LC)

2 fibers (SC) or

4 fibers (duplex LC)

Dimension (H×W×D)

86×86×25mm

Fiber Mode

single mode & multi-mode

Insertion Loss

≤0.2dB (1310nm & 1550nm)



Feature:

   ●     Standard 86 type panel and small size

   ●     Multi-function for a variety of cables: drop cable,outdoor cable, indoor cable, etc



Application:

PON Optical Distribution Network in FTTH access network
