Model No.
|
BD-FTB-8D
|
Color
|
Black, Grey White..
|
|
Max Capacity
|
8cores SC
16cores LC
|
Protection Level
|
IP55
|
|
Material
|
PC+ABS, ABS
|
Flame retardant performance
|
Non-flame retardant
|
|
Dimension(L*W*D,MM)
|
250*210*53
|
Splitter
|
1x1:8 Module Type Splitter
1x1:4 Module Type Splitter
|
The dimension diagram:(mm)
|
|
|
|
|

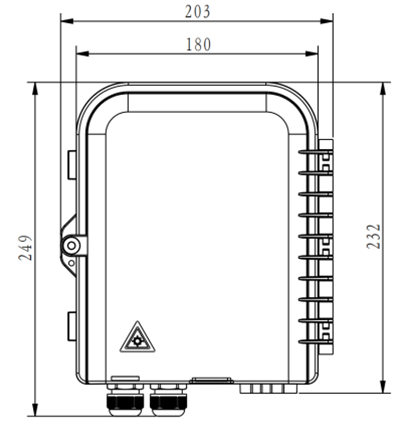

Pic#1: Top View
|

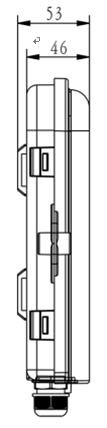

Pic#2: Side View
|

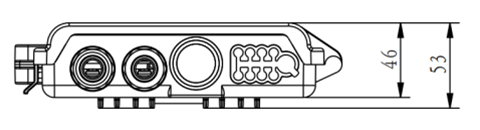

Pic#3: Front View
|
Features
● The body is made of high quality engineering
plastic with good strength;

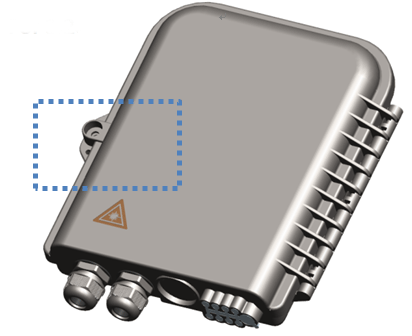

● With safe special-shaped
lock, the box can be opened easily and has good water-proof performance,
suitable for indoor and outdoor natural environments (Pic#4 for details);

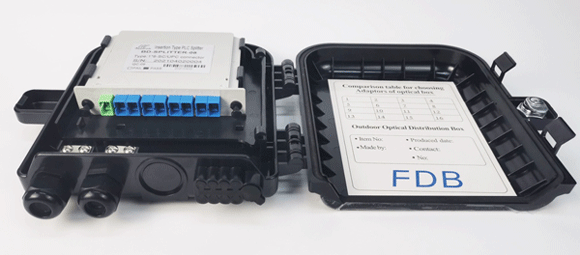

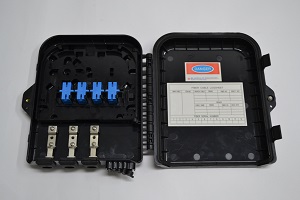

● With double-page
design, the box can be installed and maintained easily,the fusion and termination are completely separated; (
Pic#5 for details)

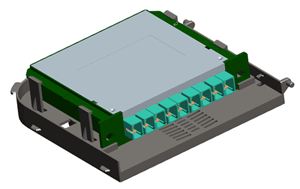

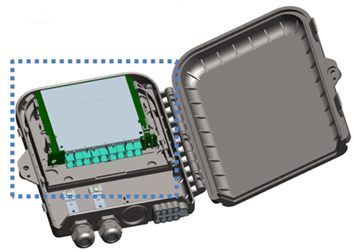

● The drop leaf can be
installed 1 pcs of 1*8 Module Type Splitter ( Pic#6 for details);

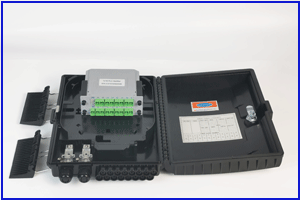

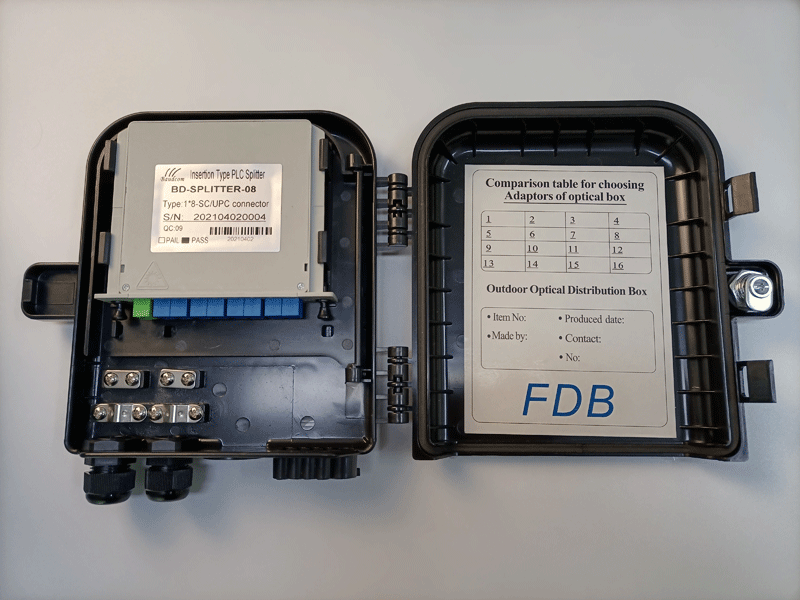

Pictures for reference
