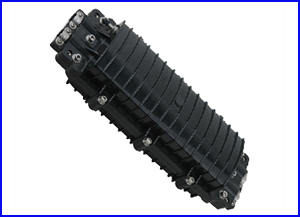

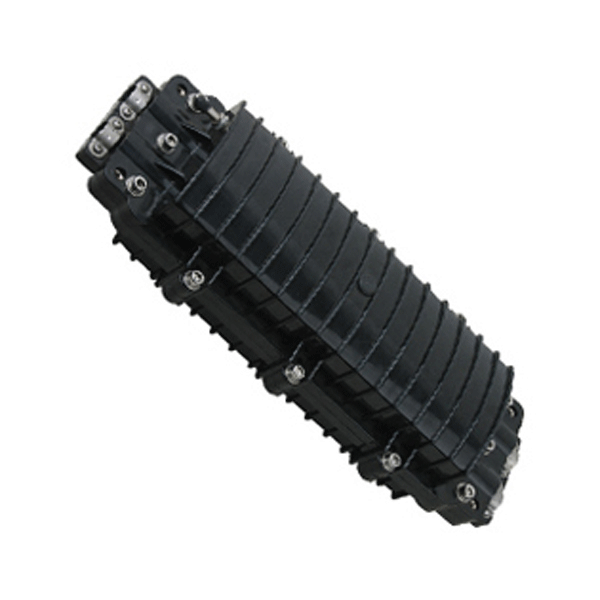

48Core Fiber Optic Splice Closure
48Core Fiber Optic Splice Closure

  Request price     Contact us

INFORMATION

When your fiber optic cable applications require aerial, buried, or handhold placements, you need to protect the cable from the harsh outside plant environment.

Closures provide an efficient and craft-friendly design for fiber routing, storage, organization and protection. They can be used as straight through, interconnection, branching and distribution closures.

The closures consist of reinforced thermoplastic with corrosion resistant hardware. Our closures can stand up to even the most severe conditions of moisture, vibration, impact, chemical, tensile cable distortion, ultraviolet radiation and extreme temperatures.

Features:

High aging resistance

High voltage resistance

Reasonable structure and easy operation

Excellent reusable mechanical sealing performance

No special tools are required for installation and re-entry

Its robust construction helps ensure high performance and reliability

Sheath retention & central strength member termination system included


Application:

◆      Aerial

◆      Direct-buried

◆      Wall-mounting

◆      Duct-mounting

Specifications:

Type

inline/horizontal

Sealing Structure

reusable mechanical sealing

Material

polycarbonate (PC)

Color

black

Dimension

465(L)*180(W)*122(H)mm

Net Weight

2.5kg

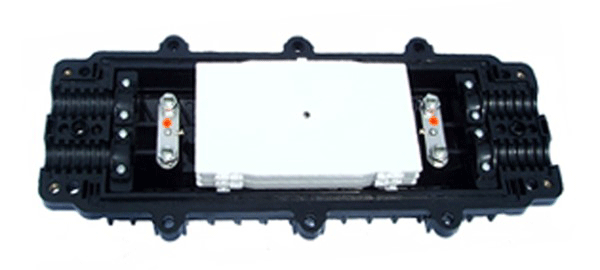

Splice Capacity per Tray

12 fibers

Max. No. of Trays

4 pieces (each tray for 12 fibers)

Max. Capacity (Single Core)

48 fibers (4 trays×12 fibers)

No. of Cable Ports

2 inlets & 2 outlets

Suitable Dia. Of Cable

8~22mm

Hinged Trays

stackable; individual tray access

Watertight and Dustproof Grade

IP68

Working Temperature

-40°C~65°C
