INFORMATION
Optical Distribution Frame is also called ODF. 19 Inch Rack Mount ODF is used for cable fixation,
termination, splicing and patching.
It is widely used in 19” Optical Distribution Frame of high density in central office.19 Inch Rack Mount
ODF is to terminate the fiber optic cable and provide connection access to the cable’s individual fibers.
Fiber patch panels are termination units, which are designed to provide a secure,organized chamber for
housing connectors and splice units.
The opening of the optical fiber patch panels can be slidable or fixed or revolving. Wall mount
patch panel is more customized, it can be any structure and dimension. And the patch panels
can be used for indoor or outdoor application.
Feature:
◆ Innovation: For 12 fibers Splice and Distribution Integrated Trays and
outdoor cross-connect cabinet, we improve our products according to
customers’ needs.
◆ Modular design: 12 fibers Splice and Distribution Integrated Trays are
adopted for easy installation and maintenance. All components are in the
form of modules to achieve flexible configuration. Components of different
models are interchangeable, which shortens delivery time, reduces costs,
and simplifies installation and maintenance.
Specification:
Housing Material
|
cold rolled steel
|

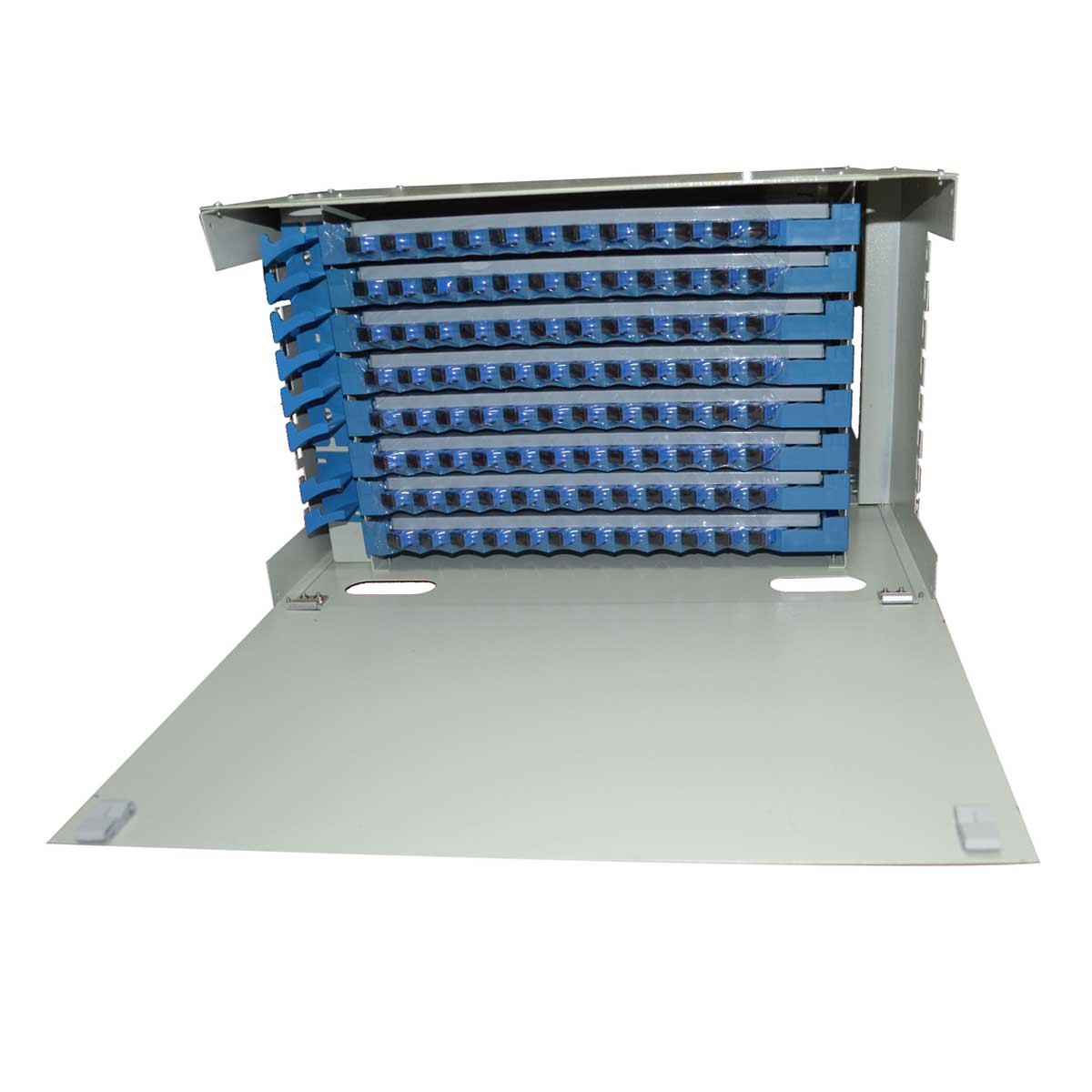

Splice and Distribution Tray Capacity
|
12 pieces of SC, FC or ST adaptors
(12 fibers);
12 pieces of duplex LC adaptors (24
fibers)
|
Applicable Adaptor
|
SC, FC (duplex LC or ST is optional)
|
Installation Method
|
SC, FC (duplex LC or ST is optional)
|

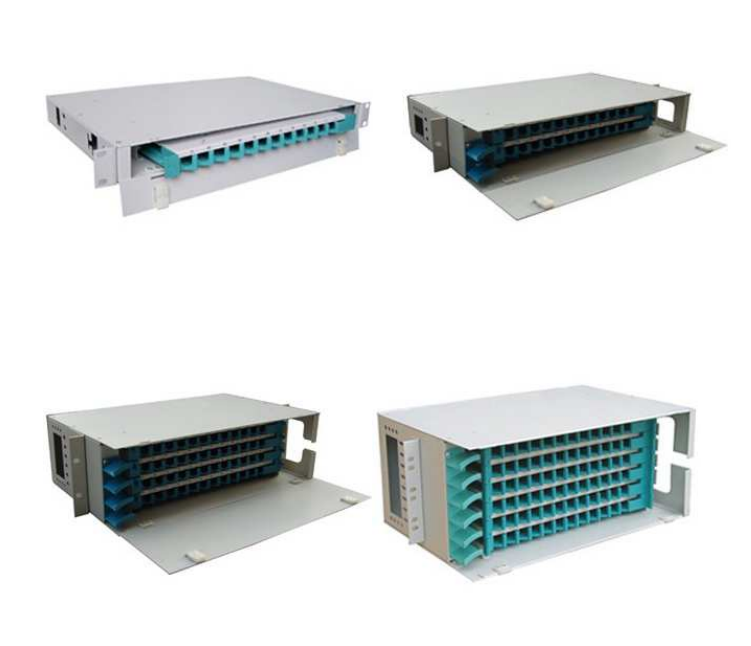

Dimension (H×W×D)
|
44.5×485×285mm (1U);
90×485×285mm (2U);
132×485×285mm (3U);
180×485×285mm (4U);
|
