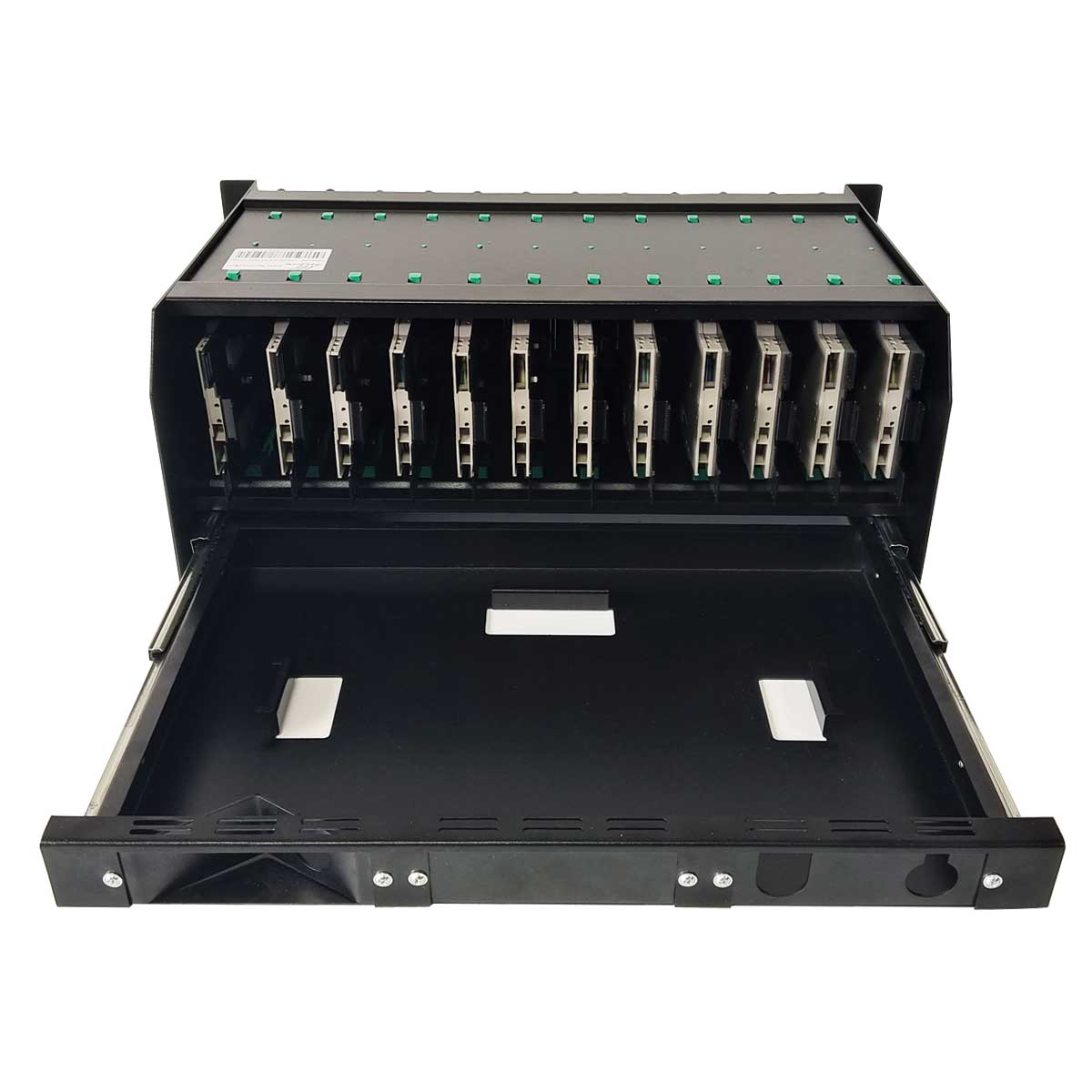

High Density 144 cores Fiber Optic Patch Panel
High density 144 cores fiber optic Panel, 12pcs cards, modular design, easy extend and maitain.

  Request price     Contact us

INFORMATION

High density 144 cores fiber optic fiber patch Panel distribution ODF integrates fiber fusion, disk storage and wiring. Each fusion module can be extracted separately, meeting the requirements of off frame or on frame operation.

Application

  1. Fiber optic distribution is a user friendly optical fiber patch system
  2. The application of such a system is in rooms where maximum flexibility is required (typically in computer centre,sub network).

Features

  1. A sub racks with cable guidance
  2. Different types of compact plug in modules,SC,LC,FC,ST,E2000 are available
  3. Accessories
  4. High qualitymaterial, Metal: SPCC 1.2mm
  5. Convenient access for service and repair work
  6. 4U 19-inch rack mount fiber patch panel
  7. High density, maximum 144core (SC, FC, ST connector) or 288cores (LC connectors)
  8. 8.Slide with tray plate

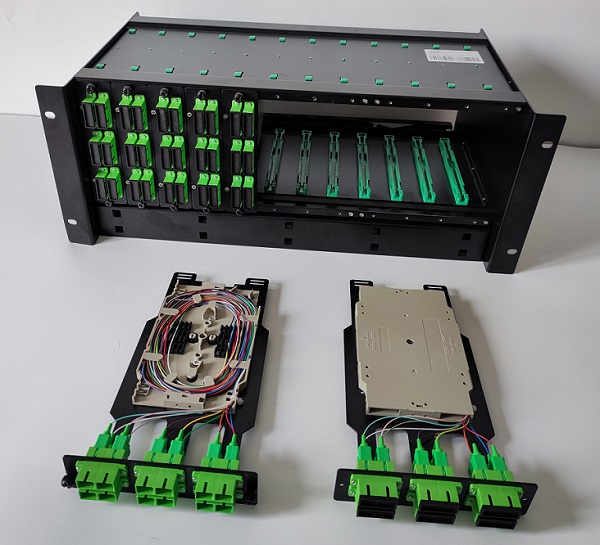

  9. the fiber optic patch panel is modular designed, Easy to maintain and extend, 12 pcs module to easy replace

 Outline dimension : 484x349x178mm

144 cores Fiber Optic Patch Panel
