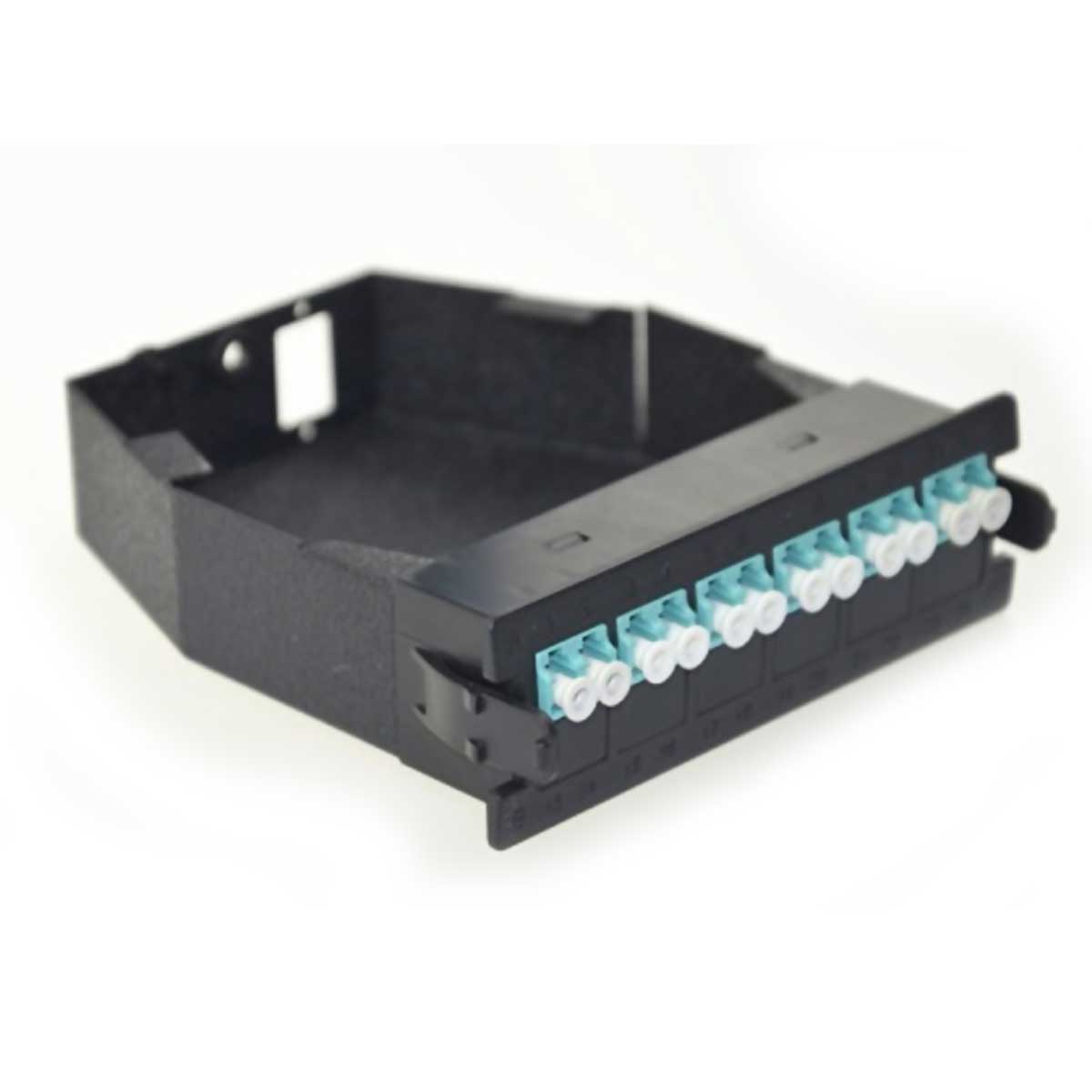

12 Fiber MPO-LC Module Cassettes
12 Fiber MPO-LC Module Cassettesis maninly used to divide the 12 fibers MPO connector of the pre-assembled terminal end to the simplex or duplex standard connector.

  Request price     Contact us

INFORMATION

12 Fiber MPO-LC Module Cassettesis maninly used to divide the 12 fibers MPO connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client’s end.Features of the 12 fibers MPO module cassettes:6 pieces of duplex LC at the front end, back side with 1 piece of MPO adapter.The module cassettes with transfer patchcord inside, used to connect with the front adapter and back adapter.

Features:

  1. Adopts high quality engineering plastics and Aluminum alloy material, with electrostatic pensu surface, outstanding in outlooking and users friendly.
  2. MPO faceplate can be upgraded easily.
  3. All the front port are with mark no. , easy to indentify.
  4. Quick and easy installed, flexible in configuration and easy to management.

 Performance of Assemblies:

MPO Termination:

Fiber Type

Single Mode

Multi-mode

Standard Insertion Loss

TypicaldB

0.35

0.35

MaximumdB

0.70

0.70

Low Insertion Loss

TypicaldB

0.20

0.20

MaximumdB

0.35

0.35

Return Loss         dB

≥60APC

≥20PC

≥50PC

Tensile Strength         kgf

10

Durability           dB

≤0.2   500 matings

Working Temperature

40 +85

Testing Wavelength       nm

1310/1550

850

Generic Connector Termination:

Fiber Type

Single Mode

Multi-mode

Parameter

UPC

APC

UPC

Insertion Loss Maximum dB

0.3

Return Loss dB

50

60

35

Durability  dB

≤0.2   500 matings

Working Temperature

40 +85

Testing Wavelength  nm

1310/1550

850

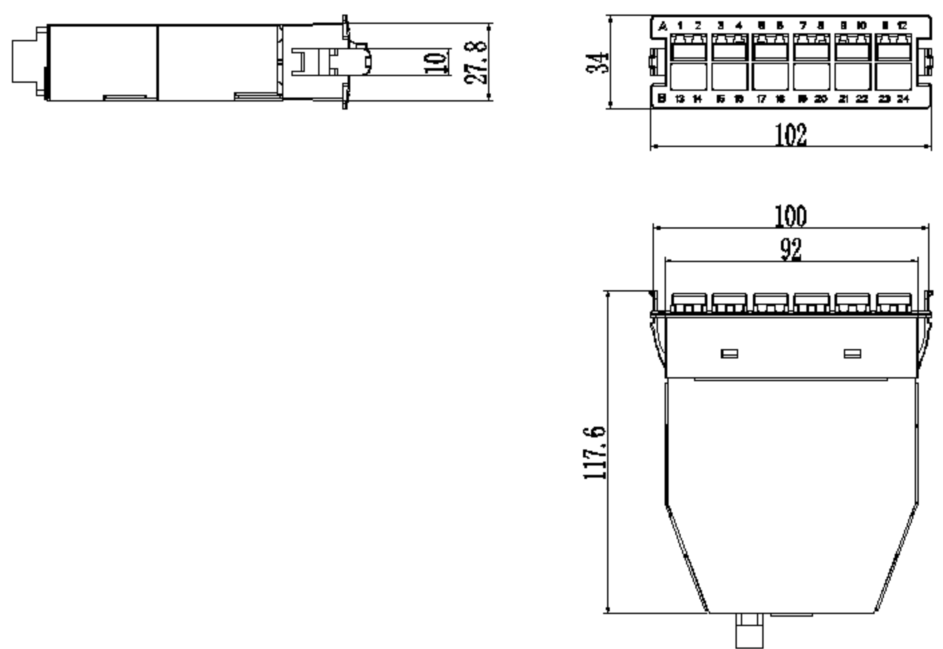

Product Installation Dimensions




Ordering information
