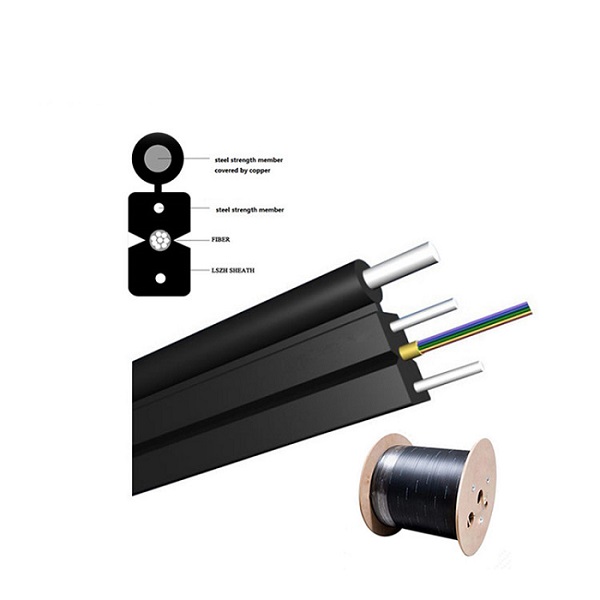

1 Cores FTTH flat outdoor fiber optic cable
1 Cores FTTH flat outdoor fiber optic cable

  Request price     Contact us

INFORMATION

Key Data

Outdoor model

BD-GJXCH

Jacket

PVC or LSZH

Cores available

1 core

Dropping steel mesenger OD

1x1.0mm

Protecting inner wires(or FRP) OD

2x0.45mm

Jacket colors

Black,white etc.,

Fiber Type

G652D/G657A1/G657A2

Modes

Singlemode, Multi-mode

Length

1km/2km/3km each roll



Fiber Parameters

No.

Items

Unit

Specification

G.657A1

1

Mode Field Diameter

1310nm

μm

9.0±0.4

1550nm

μm

10.1±0.5

2

Cladding Diameter

μm

124.8±0.7

3

Cladding Non-Circularity

%

≤0.7

4

Core-Cladding Concentricity Error

μm

≤0.5

5

Coating Diameter

μm

245±5

6

Coating Non-Circularity

%

≤6.0

7

Cladding-Coating Concentricity Error

μm

≤12.0

8

Cable Cutoff Wavelength

nm

λcc≤1260

9

Attenuation (max.)

1310nm

dB/km

≤0.35

1550nm

dB/km

≤0.21

10

Macro-Bending Loss

1turn×10mm radius @1550nm

dB

≤0.75

1turn×10mm radius@1625nm

dB

≤1.5

 Cable Parameters

Items

Specifications

Fiber Count

1

Colored Coating Fiber

Dimension

250±15μm

Color

Blue, Orange

Strength Member

Dimension

0.5mm

Material

FRP

Self-Supporting Member

Dimension

1.0mm

Material

Steel Wire

Jacket

Dimension

5.2±0.2mm×2.0±0.1mm

Material

LSZH

Color

Black



Mechanical and Environmental Characteristics

Items

Unite

Specifications

Tension (Long Term)

N

300

Tension (Short Term)

N

600

Crush (Long Term)

N/10cm

1000

Crush (Short Term)

N/10cm

2200

Min. Bend Radius (Dynamic)

mm

20D

Min. Bend Radius (Static)

mm

10D

Installation Temperature

-20~+60

Operating Temperature

-40~+70

Storage Temperature

-40~+70
