Mini ADSS ASU80 6core Optical fiber cable
Available in 80 Meter 100Meter and 120 Meter spans, two FRP

  Request price     Contact us

INFORMATION

Overview:

Baudcom’s mini ADSS Aerial Self-Supported ASU Fiber Optic Cable is used as outdoor distribution cable for outdoor-indoor distribution, the mini ADSS ASU cable is suitable for aerial long distance communication.

The ASU fiber cable are made of a loose tube structure and water-resistant gel compound which provide crucial protection for the fiber. Water-blocking material is over tuble to keep the cable watertight. Two plastic FRP elements are placed on two sides parallelly.

Compared with the traditional ADSS optical cable, the ASU optical cable with same span can reduce the production cost and reduce the overall structure size.


Baudcom’s mini ADSS Aerial Self-Supported ASU Fiber Optic Cable is used as outdoor distribution cable for outdoor-indoor distribution, the mini ADSS ASU cable is suitable for aerial long distance communication.

The ASU fiber cable are made of a loose tube structure and water-resistant gel compound which provide crucial protection for the fiber. Water-blocking material is over tuble to keep the cable watertight. Two plastic FRP elements are placed on two sides parallelly.


Compared with the traditional ADSS optical cable, the ASU optical cable with same span can reduce the production cost and reduce the overall structure size.

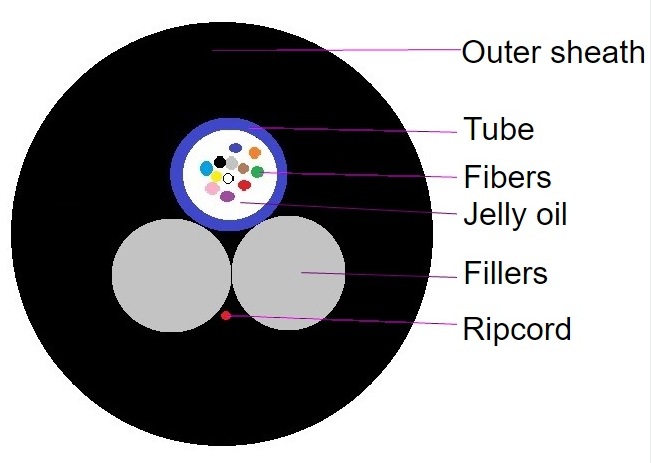

 Profile View

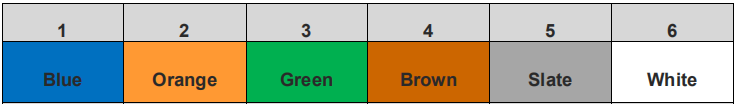

  Fibers & Loose Tube Colours Display

Fiber Parameters

No.

Items

Unit

Specification

G.652D

1

Mode Field Diameter

1310nm

μm

9.2±0.4

1550nm

μm

10.4±0.5

2

Cladding Diameter

μm

124.8±0.7

3

Cladding Non-Circularity

%

≤0.7

4

Core-Cladding Concentricity Error

μm

≤0.5

5

Coating Diameter

μm

245±5

6

Coating Non-Circularity

%

≤6.0

7

Cladding-Coating Concentricity Error

μm

≤12.0

8

Cable Cutoff Wavelength

nm

λcc≤1260

9

Attenuation(max.)

1310nm

dB/km

≤0.36

1550nm

dB/km

≤0.22

Cable Parameters

Items

Specifications

Fiber No.

6

Ripcord No.

2

Loose Tube

        Dimension

2.0mm±0.1 mm

        Material

PBT

        Tube No.

1

     Fibers per Tube

6

 FRP

 OD.

1.9mm *2

         No.

2

         Material

PVC

Outer Sheath

         OD.

7.0  ±0.1mm

         Material

PE

Color

Black

                 Mechanical and Environmental Characteristics

Items

Unit

Specifications

Weight

Kg/km

45 ±5kg/km

Max. Tensile Long Term

N

2500

Max. Tensile Short Term

N

4000

CrushLong Term

N/10cm

1500

CrushShort Term

N/10cm

3000

Min. Bend RadiusDynamic

mm

25D

Min. Bend RadiusStatic

mm

10D

Installation Temperature

-20+60

Operating Temperature

-40+70

Storage Temperature

-40+70



Ordering information
