PON Power Meter
BAUDCOM PON power meter is a small size,low loss and good quality handed-held optical power meter. It is designed for the testing,installation and maintenance of FTTX PON network,which can be used for APON, BPON, EPON and GPON network.

  Request price     Contact us

INFORMATION

General Description:
BAUDCOM PON power meter is a small size, low loss and good quality handed-held optical power meter. It is designed for the testing , installation and maintenance of FTTX PON network , which can be used for APON, BPON, EPON and GPON network. The PON power meter has two output ports for ONU and OLT/Video, which supports CW/burst upstream detection at 1310nm and downstream signal at 1490/ 1550nm. It can directly show the status of pass , warning or failure by threshold testing . The PON power meter is the ideal tool for PON setting and maintenance.

Features:
•Handed-held, Easy-to-carry and use

•P/F testing and normal testing mode

•Two testing ports with " ONU " & " OLT/Video "

•Huge data storage

•USB connection

•AC power supply


Specification:


Wavelength

1310nm (Burst)



1310nm (CW)



1490 nm

1550 nm













Linearity





± 0.2@1550 ≥ -40dBm













Isolation Rate

>40@1490nm



>40@1310nm

>40@1310nm















>40@1550nm



>30@1550nm

>30@1490nm















Measuring Range (dBm)

-30~+16





-40~+16

-50~+16















Insertion Loss(dB)







1.5



Spectral Width

1260~1360



1480~1500

1539~1565

Accuracy





0.5db ± 1nW @ 1550 nm















Threshold





10sets(configure via PC-software)

















Data storage







900















Accessories adaptors





SC/PC(standard)









ST/PC ,FC/PC (Optional)


Standard Configuration :

 1pcs Fast User Manual ; 1pcs USB Line ; 2pcs 5# 1.5V batteries ; 1pcs Software CD ; 1pcs Testing Report ;1pcs Screw driver .

Optional Accessories :
1pcs 6v φ2.1 Adaptor ; 1pcs Soft Bag ; 2pcs ST/PC , FC/PC , G3 Adaptor


Ordering information


Related Products

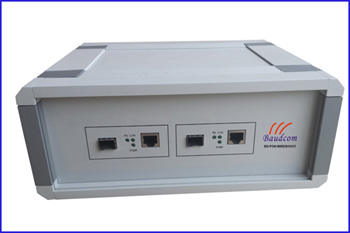

EPON Protocol Analysis Tester

EPON Protocol Analysis Tester

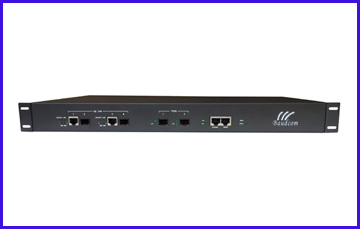

2 PON Ports GEPON OLT
