4PON Port EPON OLT
BD-OLT-4000 EPON OLT is 1U height 19 inch rack mount communicate equipement.The EPON OLT has 4PON ports and 4GE+4SFP uplink.EMS management/Console management/WEB management.

  Request price     Contact us

INFORMATION

Introduction

BD-OLT-4000 EPON OLT is 1U height 19 inch rack mount communicate equipement. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLT can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications.

BD-OLT-4000 provides 4GE(copper) and 4SFP slots independent interface for uplink, and 4*EPON OLT ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.

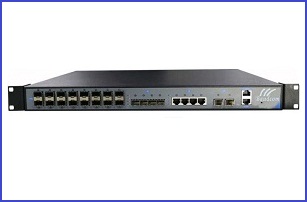

 4 EPON OLT front panel  4 epon olt real panel

Technical Specifications

Item

BD-OLT-4000

Chassis

1U 19 inch standard box

1U 19 inch standard box

1000M

Uplink Port

8

4

4*10/100/1000M auto-negotiation

2*10/100/1000M auto-negotiation

4*SFP slots

2*SFP slots

EPON Port

4

2

SFP Slots

SFP Slots

1000BASE-PX20+

1000BASE-PX20+

1:64

1:64

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification

Transmission Distance

20KM

EPON port speed

Symmetrical 1.25Gbps

Wavelength

TX 1490nm, RX 1310nm

Connector

SC/PC

Fiber Type

9/125μm SMF

TX Power

+2~+7dBm

Rx Sensitivity

-27dBm

Saturation Optical Power

-6dBm

Management Mode

SNMP, Telnet and CLI

Management Function

Fan Group Detecting;

Port Status monitoring and configuration management;

Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc;

EPON management function: DBA,ONU authorization, ACL, QOS, etc;

Online ONU configuration and management;

User management;

Alarm management.

Layer2 Switch

Support port VLAN and protocol VLAN;

Support 4096 VLANs;

Support VLAN tag/Un-tag ,VLAN transparent transmission, QinQ;

Support IEEE802.3d trunk;

Support RSTP;

QOS based on port, VID, TOS and MAC address;

IGMP Snooping;

IEEE802.x flow control;

Port stability statistic and monitoring.

EPON Function

Support port-based rate limitation and bandwidth control;

In compliant with IEEE802.3ah standard;

Up to 20KM transmission Distance;

Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;

Support Dynamic Bandwidth Allocation (DBA);

Support ONU auto-discovery/link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration; Different user and different service could provide different QoS by means of different LLID channels;

Support power-off alarm function, easy for link problem detection;

Support broadcasting storm resistance function;

Support port isolation between different ports;

Support ACL and SNMP to configure data packet filter flexibly;

Specialized design for system breakdown prevention to maintain stable system;

Support dynamic distance calculation on EMS online;

Support RSTP, IGMP Proxy.

Dimension(L*W*H)

442mm*200mm*43.6mm

Weight

3.1kg

Power Supply

220VAC

AC:90~264V, 47/63Hz

Power Consumption

25W

Operating Environment

Working Temperature

-10~+55

Storage Temperature

-40~+85

Relative Humidity

5~90%(non-conditioning)






















































































Related Link:

questions about EPON OLT



Question: What is the port that listen the EMS server?

   Answer: The listen port of the 4port EPON OLT is 161 and 162.
