INFORMATION

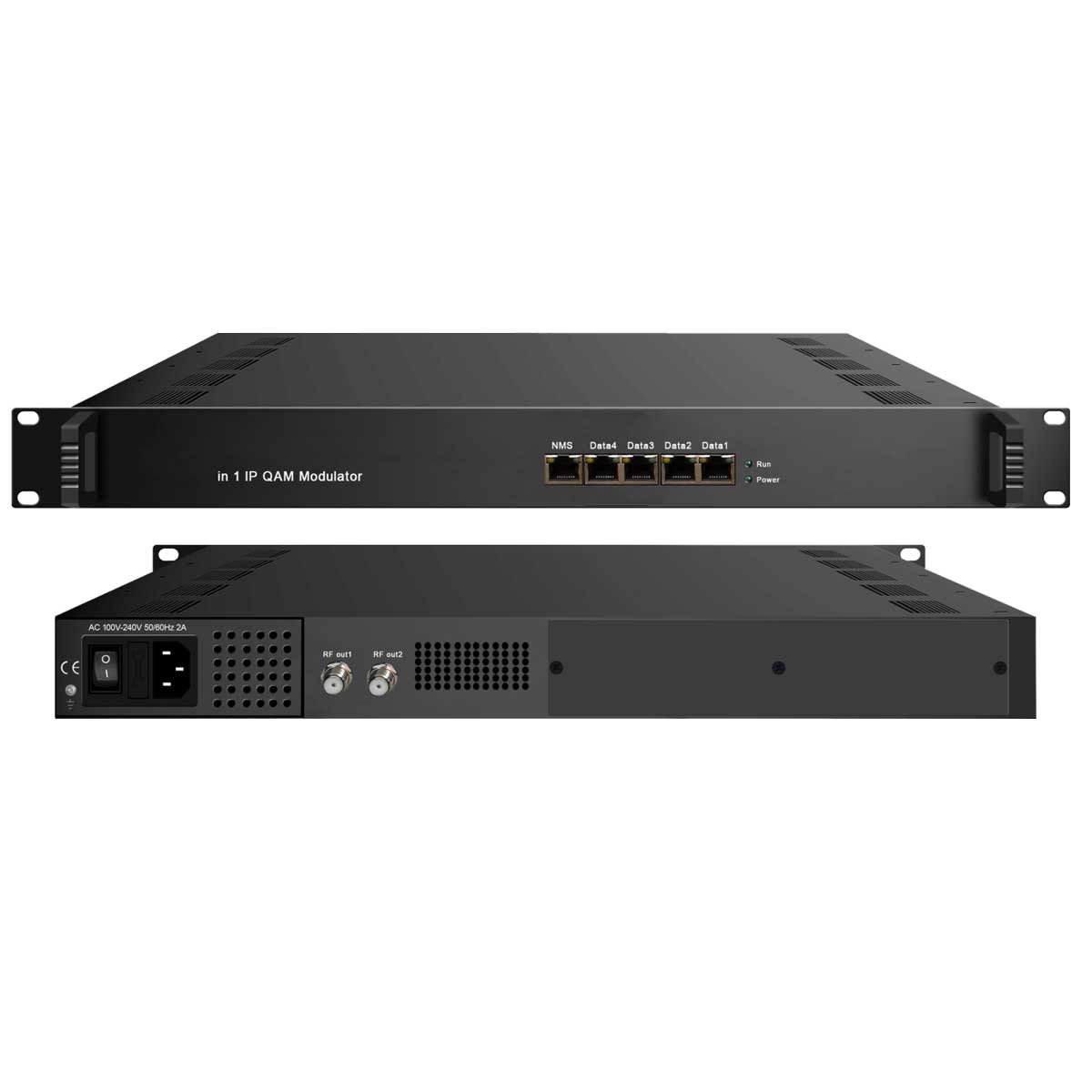

The 64 in 1 IP QAM modulator is a Multiplexing-scrambling-modulating all-in-one device developed by Baudcom. The 64 in 1 ip qam modulator has 64 multiplexing channels, 64 scrambling channels and 64 QAM
(DVB-C) modulating channels, and supports maximum 512 IP inputs through 4 data ports and 64 non-adjacent carriers (50MHz~960MHz) output through 2 RF output interfaces. The device is characterized with
dual RF output ports which broaden the bandwidth for QAM carriers.
Key Features
4GE inputs, Data1, Data2, Data3 and Data 4
Supports up to 512 IP inputs through 4 data ports over UDP/RTP
Max 840Mbps and 512 IP inputs for each GE inpu
Supportsaccurate PCR adjusting, CA PID filtering, PID remapping and
PSI/SI editing
Supports up to 256 PIDremapping per channel
Support DVB general scrambling system (ETR289), simulcrypt standards
ETSI 101 197 and ETSI 103 197
Support 64 multiplexed or scrambled IP outputs over UDP/RTP/RTSP
64 non-adjacent QAM carriers outputfrom 2 RF interfaces, compliant to
DVB-C (EN 300 429) and ITU-T J.83 A/B/C
Supports RS(204,188) encoding
SupportWeb-based Network management
Specification
Input
|
Input
|
Max 512 IP inputs from 4*100/1000M Ethernet Port
|
Transport Protocol
|
TS over UDP/RTP, unicast and multicast, IGMP V2/V3
|
Transmission Rate
|
Max 840Mbps for each GE input
|
Mux
|
Input Channel
|
512
|
Output Channel
|
64
|
Max PIDs
|
256 per channel
|
Functions
|
PID remapping(auto/manually optional)
|
PCR accurate adjusting
|
PSI/SI table automatically generating
|
Scrambling
Parameters
|
Max simulscrypt CA
|
6
|
Scramble Standard
|
ETR289, ETSI 101 197, ETSI 103 197
|
Connection
|
Local/remote connection
|
Modulation
Parameters
|
Modulation Standard
|
EN300 429/ITU-T J.83A/B/C
|
Constellation
|
J.83A
|
Constellation :16/32/64/128/256QAM
|
Bandwidth :8M
|
J.83B/C
|
Constellation :64/256QAM
|
Bandwidth :6M
|
QAM Channel
|
64 non-adjacent carriers, 384Mbps bandwidth for each RF interface
|
Symbol Rate
|
5.0~7.0Msps, 1ksps stepping. 5057Ksps (J.83B, 64QAM) ; 5361Ksps (J.83B, 256QAM)
|
Constellation
|
16, 32, 64 , 128, 256QAM
|
FEC
|
RS (204, 188)
|
RF Output
|
Interface
|
2 F type output ports for 64 carriers, 75Ω
|
RF Range
|
50~960MHz, 1kHz stepping
|
Output Level
|
-20dBm~+10dBm(87~117dbμV), 0.1dB stepping
|
MER
|
≥ 40dB
|
TS output
|
64 IP output over UDP/RTP/RTSP, unicast/multicast, 4*100/1000M Ethernet Ports (each port for 16 IP outputs)
|
System
|
Web-based Network management
|
General
|
Demission
|
420mm×440mm×44.5mm (WxLxH)
|
Temperature
|
0~45℃(operation), -20~80℃(storage)
|
Power Supply
|
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
|
