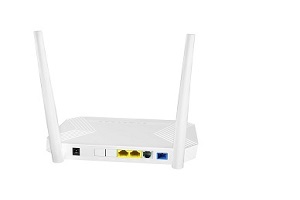

1GE+1FE+CATV+2WIFI+1POTs XPON ONU
BD-ONT-412WT is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.

  Request price     Contact us

INFORMATION

Overview

●    BD-ONT-412WT is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.

●    BD-ONT-412WT is based on mature and stable, cost-effective XPON technology.

●    BD-ONT-412WT adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X

Functional Feature

       ●    Support EPON/GPON mode and switch mode automatically

       ●    Support Route mode for PPPoE/IPoE/Static IP and Bridge mode

       ●    Support IPv4 and IPv6 Dual mode

       ●    Support 2.4G WIFI and 2*2 MIMO

       ●    Support SIP Proctol for Voip Service

       ●    Support CATV interface for Video Service and remote control by Major OLT

       ●    Support LAN IP and DHCP Server configuration

       ●    Support Port Mapping and Loop-Detect

       ●    Support Firewall function and ACL function

       ●    Support IGMP Snooping/Proxy multicast feature

       ●    Support TR069 remote configuration and maintenance

       ●    Specialized design for system breakdown prevention to maintain stable system

Hardware Specification

Technical item

Details

PON Interface

1 GPON BOB Bosa on Board

Receiving sensitivity: ≤-28dBm

Transmitting optical power: +1~+4dBm

Transmission distance: 20KM

Wavelength

TX: 1310nm, RX: 1490nm

Optical Interface

SC/APC Connector

Design Scheme

RTL9602C+RTL8192FR+Si32192     BOB(RTL8290B)

Chip Spec

CPU 625MHz,DDR2 64MB

Flash

SPI Nor Flash 16MB

LAN Interface

1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

Wireless

Compliant with IEEE802.11b/g/n,

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps,

2T2R,2 external antenna 5dBi,

Support: Multiple SSID

Channel: Auto

Modulation type: DSSS, CCK and OFDM

Encoding scheme: BPSK, QPSK, 16QAM and 64QAM

CATV Interface

RF, WDM, optical power : +2~-15dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF output level: 78dBuV

AGC range: -13~+1dBm

MER: ≥32dB@-15dBm

POTS interface

1 FXS, RJ11 connector

Support: G.711/G.723/G.726/G.729 codec

Support: T.30/T.38/G.711 Fax mode, DTMF Relay

Line testing according to GR-909

LED

10 LED, For Status of WIFIWPSPWRLOSPONLAN1~LAN2FXS Worn Normal(CATV)

Push-Button

3,For Function of Reset, WLAN, WPS

Operating Condition

Temperature: 0~+50

Humidity: 10%90%non-condensing

Storing Condition

Temperature: -30~+60

Humidity: 10%~90%non-condensing

Power Supply

DC 12V/1A

Power Consumption

≤6W

Dimension

180mm×107mm×28mmL×W×H

Net Weight

0.2Kg

Panel lights Introduction

Pilot  Lamp

Status

Description

WIFI

On

The WIFI interface is up.

Blink

The WIFI interface is sending or/and receiving data (ACT).

Off

The WIFI interface is down.

WPS

Blink

The WIFI interface is securely establishing a connection.

Off

The WIFI interface does not establish a secure connection.

PWR

On

The device is powered up.

Off

The device is powered down.

LOS

Blink

The device doses not receive optical signals or with low signals.

Off

The device has received optical signal.

PON

On

The device has registered to the PON system.

Blink

The device is registering the PON system.

Off

The device registration is incorrect.

LAN1~LAN2

On

Port (LANx) is connected properly (LINK).

Blink

Port (LANx) is sending or/and receiving data (ACT).

Off

Port (LANx) connection exception or not connected.

FXS

On

Phone has registered to the SIP Server.

Blink

Phone has registered and data transmission (ACT).

Off

Phone registration is incorrect.

Worn

(CATV)

On

Input optical power is higher than 3dbm or lower than -15dbm

Off

Input optical power is between -15dbm and 3dbm

Normal

(CATV)

On

Input optical power is between -15dbm and 3dbm

Off

Input optical power is higher than 3dbm or lower than -15dbm

Application

Typical SolutionFTTH(Fiber To The Home)

Typical BusinessINTERNETIPTVWIFI VOIPCATV etc
