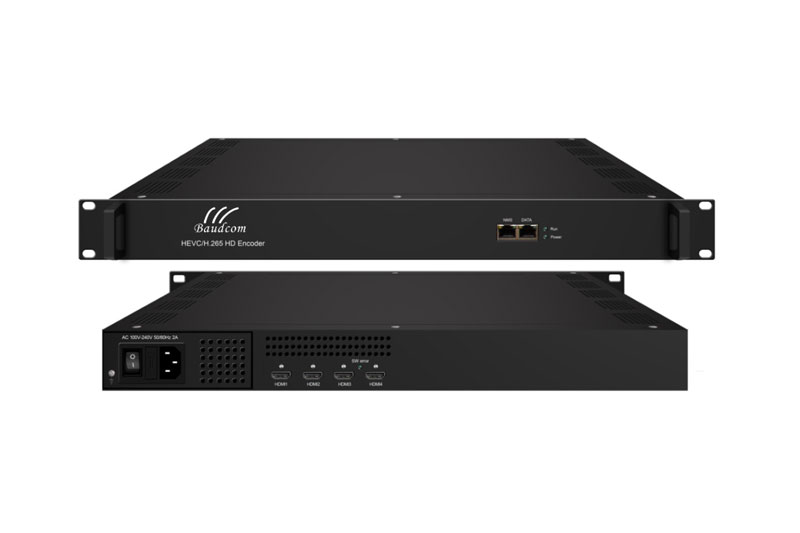

MPEG 4AVC/H.264 HEVC/H.264 HD Encoder
Baudcom HEVC/H.265 encoder adopts Fujitsu chip which offers stable bitrate with lower fluctuation compared with other encoding chips, so it provides smooth TS for modulators.

  Request price     Contact us

INFORMATION

High Spot:

Principle Chart of Per Module

(the number of encoding channels depend on encoding format and resolution)

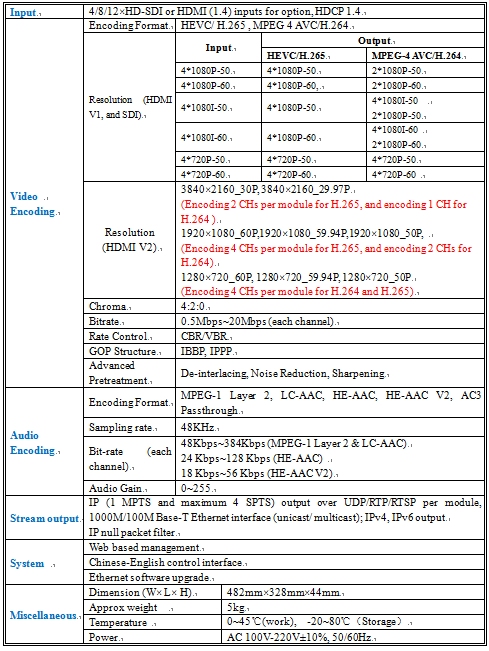

Technical Specification



HEVC/H.265 encoder’s advantages

1.Providing smooth TS for modulators

Baudcom HEVC/H.265 encoder adopts Fujitsu chip which offers stable bitrate with lower fluctuation compared with other encoding chips, so it provides smooth TS for modulators. It is widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.

2.Encoding with highest compression formatB frame (IBBP)

    What is B Frame?

There are 3 major picture types used in the different video algorithms, they are I, P and B.

They are different in the following characteristics:

Iframes are the least compressible but don't require other video frames to decode.

Pframes can use data from previous frames to decompress and are more compressible than Iframes.

Bframes can use both previous and forward frames for data reference to get the highest amount of data compression.


In one word, B frame is the highest compression format which makes it possible to process HD video at low bit rate. HEVC/H.265 encoder is not able to save bandwidth unless it is with B frame. In encoder parameters, B frame is often described in GOP (Group of Pictures) structure, like “IBBP”.





Ordering information
