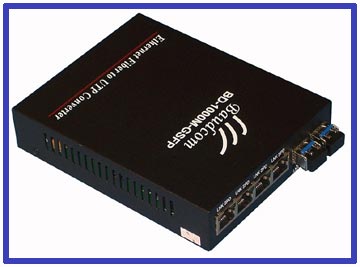

Gigabit WDM Media Converter
WDM Gigabit Fiber media converter 10/100/1000 media converter transmitting 1000M Ethernet electrical signal through ONE fiber.

  Request price     Contact us

INFORMATION

Overview:
The WDM 10/100/1000M fiber media converter transmit 1000M Ethernet electrical signal over ONE fiber,which releasing 10/100/1000M Base-TX Ethernet over 1000Base-FX single fiber transmission,extend network transmission distance.

Features:

   ●   conforms to IEEE802.3, IEEE802.3u (10Base-T, 100Base-TX, 100BaseT-FX) international standard;

   ●   brings 1M buffer, supports 2KMAC address;

   ●   isolates network conflict and broadcasting package effectively, has the function of preventing broadcasting storm;

   ●   supports 802.1Q and 16 groups of VLAN;

   ●   single-mode connection: transmitting range can reach 80 kilometers.

  • Product characteristic:
       ●   international standard: IEEE802.3z, 1000Base-SX/LX
                                             IEEE802.3ab 1000Base-T;
       ●   Ethernet 10/100/1000M auto-adaptable;
       ●   Interface:  10/100/1000Base-T:  RJ45
       ●   1000Base-T:  EIA/TIA-568 Cat5, 100 meters;
       ●   1000Base-LX:  62.5/125?m multi-mode fiber, can reach 550 meters
       ●   9/125?m single-mode fiber, can reach 10-80Km
       ●   environment condition                               Dimension
           Operating temperature:  0C~+50 C            118(W) × 70 (L) x 27(H) mm
           Storage temperature:   -20 C~+70 C
           Relative temperature:95% (uncondensed)
    Power supply
       ●   working voltage range wide, good
       ●   anti-disturb and Isolation, work stable
       ●   option I - DC-48V,range DC-36V~DC-72C
       ●   option I - AC220,range AC160V~AC240V



  • Ordering information
