INFORMATION
Feature:
- Supports the 10G GPON/GPON access service. All the three can function as an optical line terminal (OLT) in the GPON system, working with the optical network terminal (ONT) or other optical network units (ONUs).

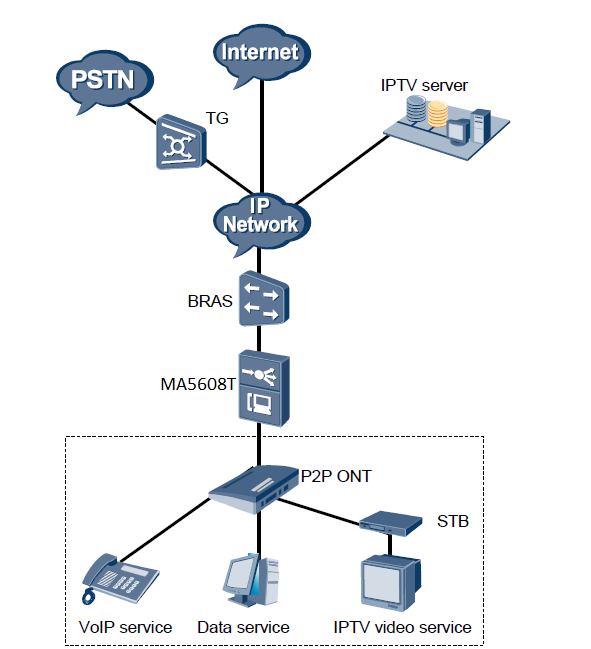

- Supports the point-to-point (P2P) FE/GE optical access. The P2P board is mainly used for cascading, and it can also provide users with P2P FTTH access by cooperating with ONTs.
- Provides the voice service solution based on the Session Initiation Protocol (SIP) and H.248, supports the POTS port to implement the voice service, fax service, narrowband modem service, and various supplementary services.
- Provides the E1/N*64k private line service through the TDM SHDSL board. And H802EDTB board supports the TDM SHDSL feature.
- Supports broadband access services such as ADSL2+, VDSL2, and SHDSL, enhancing the xDSL function.

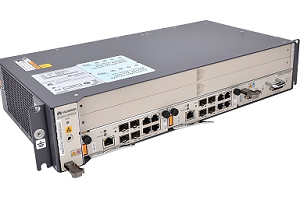

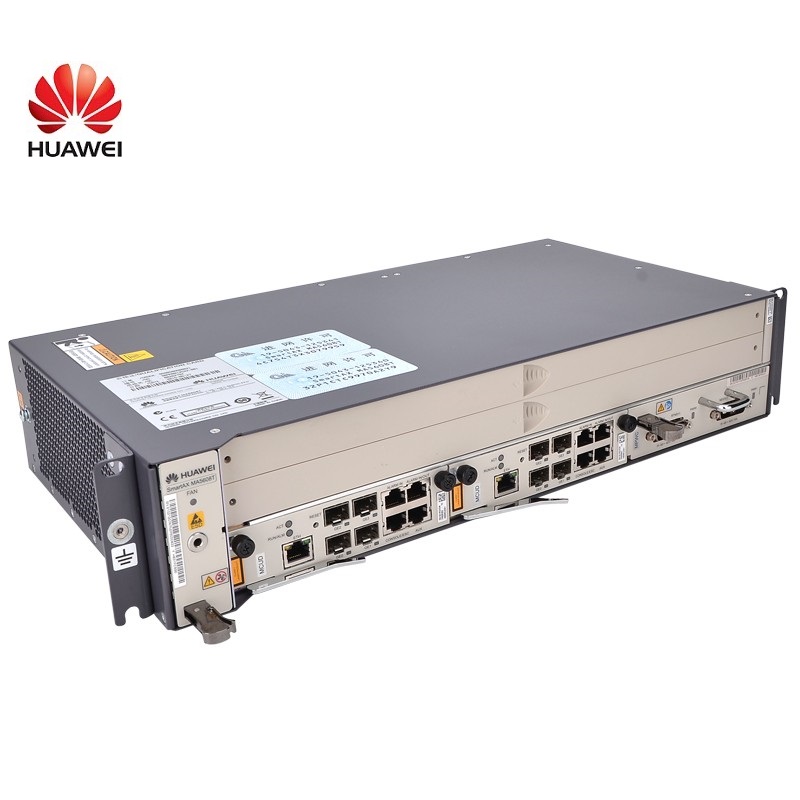

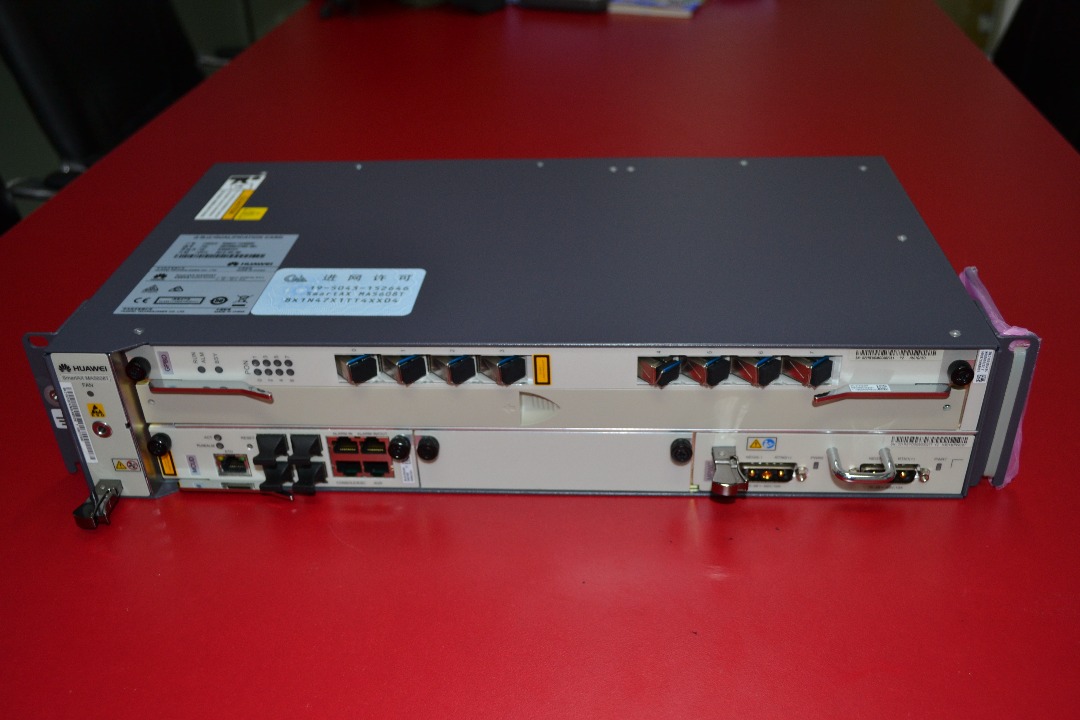

MA5608T Specification
| Board Configuration |
control boards (2 slots), service boards (2 slots), power interface board (1 slot) |
| switching capacity (control board) /System Layer 2 packet forwarding rate |
MCUD/MCUD 1: 128 Gbit/s (active/standby mode),256 Gbit/s (load-sharing mode) |
| Switching/Forwarding delay |
The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load |
BER of a port when the port transmits data in full load < 10 e-7 |
| System reliability specifications |
System: redundant configuration.System availability for the typical configuration: > 99.999%.Mean time between failures (MTBF): about 45 years. (for reference). |
| Operating environment |
Operating temperature: -40°C ~ +65°C,Operating humidity: 5% ~ 95% RH,Atmospheric pressure: 61 ~ 106 kPa, Altitude: ≤ 4000 m
|
| Max. number of ADSL2+ / VDSL2 / POTS ports |
128 |
| Max. number of EFM SHDSL /ISDN BRA / ISDN PRA ports |
64 |
| Max. number of TDM SHDSL / GPON ports |
32 |
| Max. number of 10G GPON ports |
8 |
| Max. number of P2P FE / GE ports |
96 |
Dimensions and weight of the ma5608t olt
Item
|
Specification
|
Dimensions (W x D x H, excluding mounting brackets)
|
442mm×244.5mm×88.1mm
|
Dimensions (W x D x H, including mounting brackets of IEC standard)
|
482.6mm×244.5mm×88.1mm
|
Dimensions (W x D x H, including mounting brackets of ETSI standard)
|
535mm×244.5mm×88.1mm
|
Weight (empty chassis)
|
3.55kg
|
Running environment parameters of the ma5608t olt
Environment Parameter
|
Specification
|
Working environment temperature
|
-40°C to +65°C
|
Working environment humidity
|
5% RH to 95% RH
|
Atmosphere pressure
|
70 kPa to 106 kPa
|
Altitude
|
< 4000 m
|

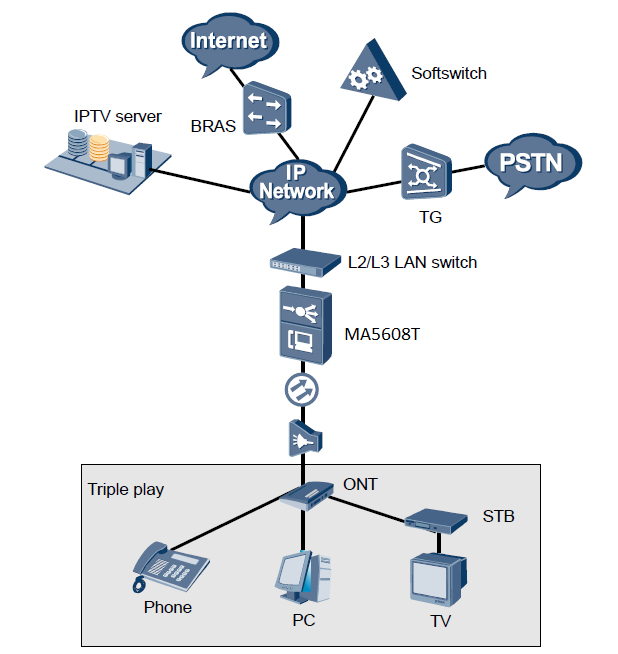

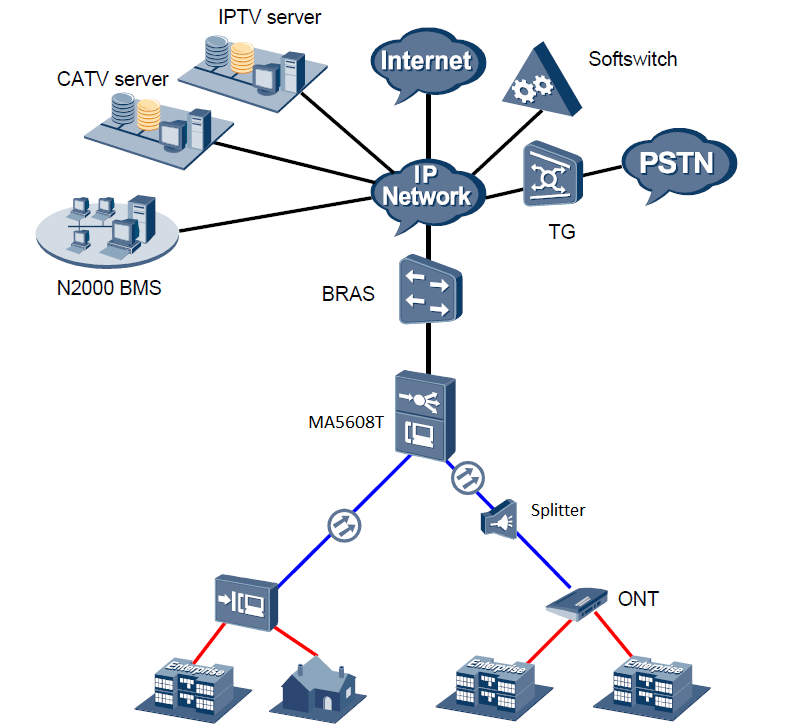

Huawei ma5608t olt Positioning
- Deployed at the remote end, including the base stations (BSs) and outdoor environments
- 2 U high, and supports a maximum of two service boards
- Connected to MxUs or ONTs and used in FTTB/C and FTTH scenarios
- Connected to xDSL terminals and phones and used in the MSAN/DSLAM scenario
Related Video:

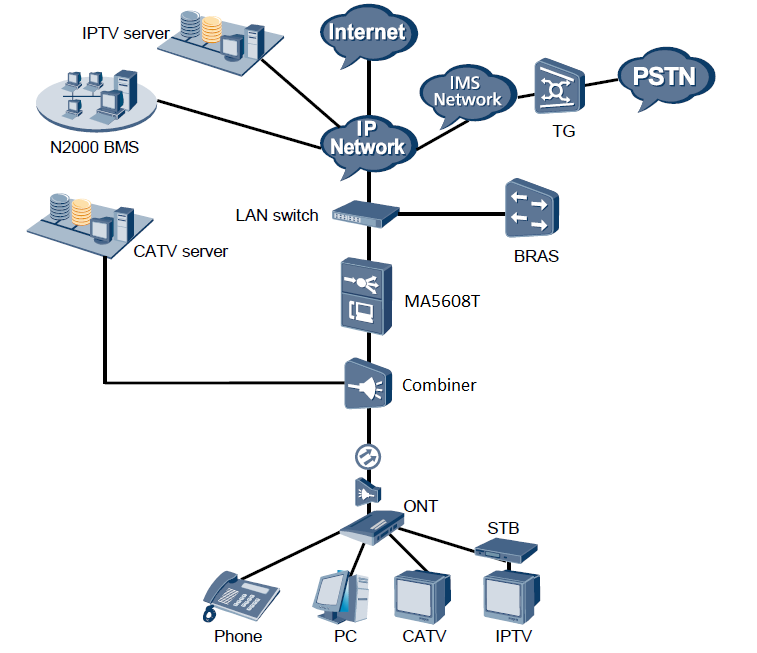

GPON FTTH total solution:
HUAWEI OLT+BAUDCOM CATV transmitter and amplifier
