Fast Ethernet over 16E1 Enhanced Protocol Convertor
Enhanced Protocol Convertor,16E1, support multi-management: WEB management, console management, SNMP management, double power

  Request price     Contact us

INFORMATION

Overview

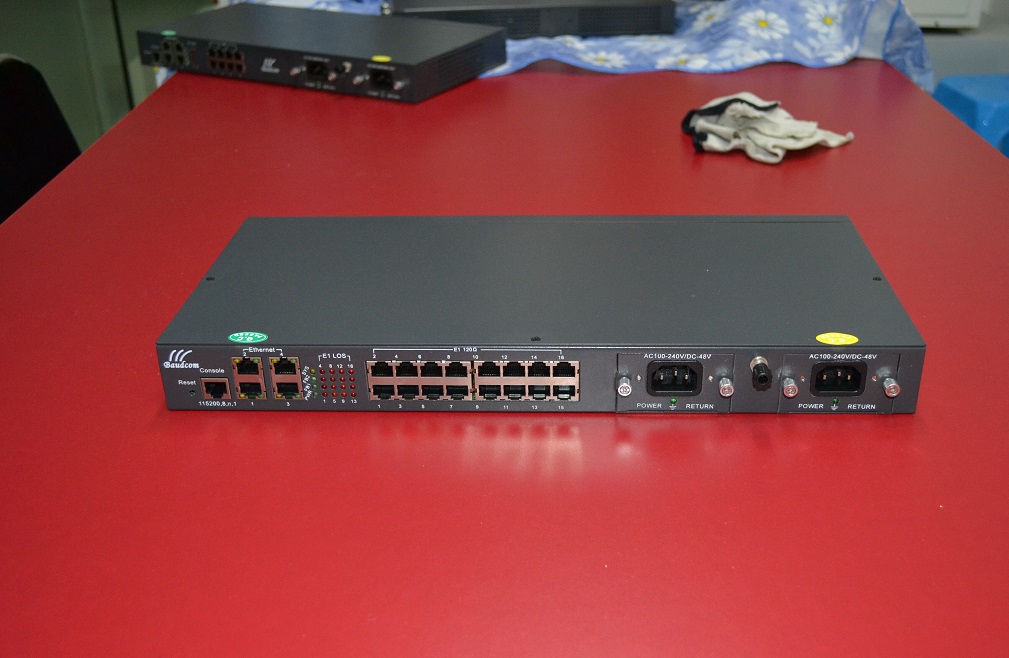

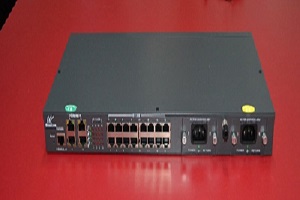

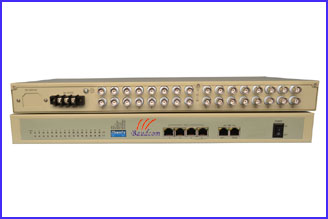

BD-16E1-4ETH-EN is Fast Ethernet over 16-port E1 protocol convertor. Ethernet traffic over E1 lines is transferred to the packet-switched network via the unit’s Fast Ethernet ports. The encapsulation method support GFP.


Features

  • Built-in intelligent switch fabric and provide 4-port fast Ethernet
  • Support 2047 bytes frames Up to 2K MAC address entries
  • Support IEEE802.1Q VLAN and QinQ double tagging
  • Support GFP encapsulation
  • Support E1 frame or un-frame application
  • Provide statistics for each E1 channel
  • Configure via CLI/Web/SNMP (v1/v2c)
  • Support software and firmware upgrade

Specifications

E1 Interface

l  Number of Ports: 16

l  Interface Standard:G.703 G.704

l  Line Impedance and Connector

120 Ω, balanced, RJ-45

75Ω, unbalanced, BNC

l  Data Rate and Line Code:2.048 Mb/s , HDB3

l  Line Protection:

15 KV ESD protections

6KV/42Ω surge protection

Ethernet Interface

l  Number of Ports:

RJ45:2

SFP:2

l  Type: 10/100 Mbps, auto-negotiation, full/half duplex, flow control, MDI/MDX crossover

l  Compliance: Relevant sections of IEEE 802.3

l  Max Frame Size : 2047 bytes

l  Connector and Electrical Cable Type: RJ-45 and SFP

l  Line Protection:

Built-in 1.5 KV Magnetic Isolation Protection

6KV/42Ω surge protection

Encapsulation Protocols

l  GFP-F(ITU-T G.8040, G.7041/Y.1303)

l  LCAS (ITU-T G.7042)

Internal Bridge

l  Number of VLANs : Up to 16

l  Compliance: Relevant sections of 802.1Q and QinQ double tagging

l  LAN Table:  Up to 2K MAC addresses (learned)

Management Ports

l  Console Port

Interface standard: RS-232

Connector: RJ-45

Data rate: 115.2 kbps

Physical Characteristics

l  Housing: Metal

l  Dimensions:

C6008/C6016: 430 x 200 x 43.5mm (Standard 1U and 19-inch rack mount size)

l  Weight:

C6008: 2.3kg

C6016: 2.7kg

Environmental Limits

l  Operating Temperature:  0 to 50°C

l  Storage Temperature:  -40 to 70°C

l  Ambient Relative Humidity: 10 to 95% (non-condensing)

Power Requirements

l  Input Voltage:

AC:100-240VAC(±10%),50/60Hz

DC:-48VDC (36-72VDC)

AD: AC/DC dual power supply universal input

l  Power Consumption: <5 watts



Typical Applications

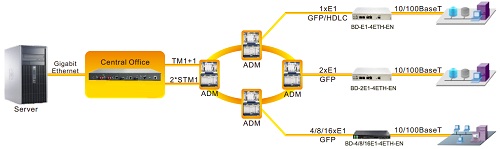

The device can be used in a point-to-point application or in a hub-and-spoke topology, operating opposite BD-16E1-4ETH-EN and third-party gateways.

Typical applications include:

l  Ethernet private Line/LAN services

l  IP DSLAM, cellular IP, and WiMAX base station backhauling

l  Interoffice or enterprise LAN connection.
