2x1.25G to 2.5G Aggregator
Dual Gigabit Ethernet Aggregator mapping 2 port Gigabit Ethernet into 1 port 2.5G uplink, reducing the conversion CAPEX and increasing the fiber utilization effectively.

  Request price     Contact us

INFORMATION

1Overview

Dual Gigabit Ethernet Aggregator mapping 2 port Gigabit Ethernet into 1 port 2.5G uplink, reducing the conversion CAPEX and increasing the fiber utilization effectively.

Aggregator can be used in point-to-point topology as a media converter for transmitting two Gigabit Ethernet services over one pair fiber. It also can be used as wavelength converter for extending the system's transmission capacity doubly in CWDM system.

This series has powerful management function via WEB or SNMP mode when used in 2U system platform. It also support used standalone without any configuration.

The device has three SFP-based ports: SFP3/2.5G is 2.5G uplink line port, SFP2 and SFP1 are Gigabit Ethernet client ports. The Aggregator must be used in couples.



2、OUTLINE DESCRIPTION

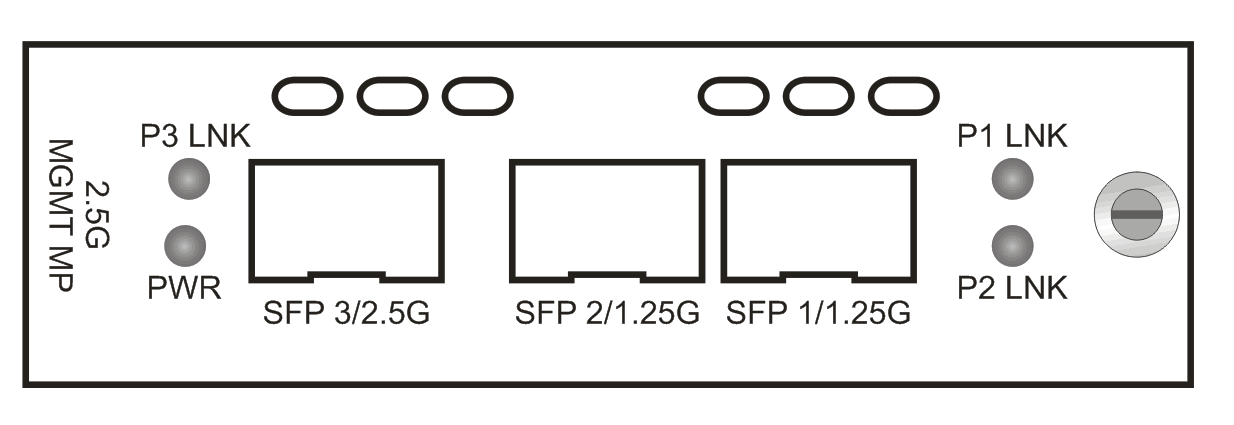

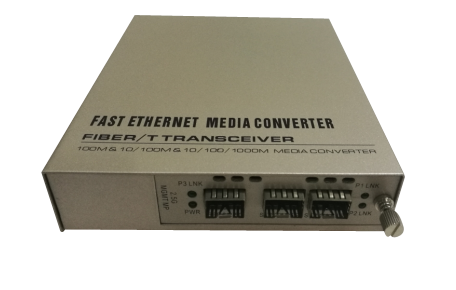

2.1 Front panel diagram


2.2 LED Description



There are five LED At Front panel of Device

LED  label

Color

Description

P3 LNK

Green

ON: 2.5G Uplink is on.

Blinking: Data transmission is on

P2 LNK

Green

ON: SFP2 connecting is on.

Blinking: Data transmission is on

P1 LNK

Green

ON: SFP1 connecting is on.

Blinking: Data transmission is on

PWR

Green

ON: Power supply is normal



3Technical Specifications

Optical Specification

l   Interface Type: 1000base-X

l   Optical ConnecterSC/PC,LC/PC

l   Transmission distance: 220m~120Km

l   Multi-mode: 50/125 or 62.5/125μm

l   Single-mode: 9/125μm



Data Transfer Rate:

l   2.5Gbps for SFP3, 1.25Gbps for SFP2 and SFP1.

l   Frame Loss Rate: 0% (64 ~1518 bytes @ 100% data rate)

l   Frame rate: 100% line rate

l   maximum Frame size: up to 10000bytes

l   Latency2500ns/pair (Connected by short jumper line)

Support Hot-swap

Power Requirement:

l   power consumption: 4W(Max)

l   Power adaptor: 220V(110-245V)AC50Hz

l   Voltage+5VDC

Environmental:

l   operating temperature Range: 0 50

l   Storage Temperature range: -40 oC to 85 oC

l   Relative Humidity: 5% to 95% no Condensation

Physical description:

l   Dimensions: 120x80x25mmH×W×D

l   Weight: 0.15Kg



4Network management function

l   All the LED status of the aggregator

l   The connection of the three port

l   DDM information of the sfp optical module



5、Typical Application:



No Aggregatoruse two pair fiber



Use Aggregatoronly one pair fiber
