Serial to Ethernet Converter Console server
serial(RS232,RS485 or RS422) to Ethernet converter.support software and WEB management.Industrial terminal port.

  Request price     Contact us

INFORMATION

Overview
   The  Serial Server is the best choice for simple serial to Ethernet connectivity applications. Delivering a cost effective solution in a compact size, the serial server offers flexibility making it ideal for applications that require an authentic serial connection across an Ethernet network.

The Serial server can implement the conversion between 1channel RS232/RS485/RS422 serial ports and 10/100M Ethernet ports, and two models are available: complete machine and embedded module. It can be extensively used for data collection of supervision and control system for power in machine room and base station of operators, automatic supervision and control for plant, automation of medical treatment and medicine, networking control of electromechanical instrument, networking control of attendance checking, networking control of security/access control and other occasions.

Features
1.     It has a compact structure, adopting high-performance processor and high-capacity memory;
2.     DeviceManager software for centralized management and control;
3.     WEB browser for remote setup of the equipment;
4.     It can support three communication modes: virtual serial port application, controls developed by our Company and Socket;
5.     It can support RS232/485/422
6.     Rating of serial port reach 50BPS ~ 460800BPS;
7.     Isupport three operating modes: TCP Server, TCP Client and UDP; the working port, destination IP and port can be set;
8.     Ethernet supports 10M/100M, full-duplex / half-duplex and adaptive modes;
9.     It can support multiple protocols: ETHERNET, ARP, IP, ICMP, IGMP, UDP, TCP, HTTP etc.

Ethernet Interface RS232 RS422 RS485 over ethernet lan converter
 10/100Mbps rate
 full/duplex auto-negotiation
 Protocol: Support IEEE 802.3

 RJ45 connector

Serial interface
  Seletable RS232/RS422/RS485
  Software and hardware flow control
  DB9 connector
  TX and RX activity indicators

Application:
       Connect serial devices to server based applications over an IP network
       Manage remote serial console ports over an IP network
       Virtual modem capability for modem-based applications
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
option I – AC220V,range AC165V~AC240V
         AC110V(optional)
Power Consumption:      <=3 Watts

environment condition
Operating temperature:  0C~+55 C
Storage temperature:   -20 C~+70 C
Relative temperature:95% (uncondensed)

Dimension
     113mm(L)x108mm(W)x 30mm(H)

Application

using Raw UDP Sockets




UDP based applications, convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.

Console Server

For access to remote console ports on routers, switches,etc, enable administrators secure access to these RS232 ports via inband Reverse Telnet or out of band with dial-up modems.


Ordering information


Related Products

RS232 over fiber optical modem

RS232 over fiber optical modem,WDM(bi-di),dual fiber,SM,MM availble

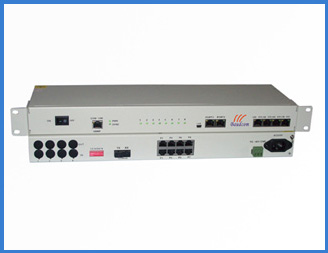

8Channel Voice(FXS/FXO) Phone over Fiber Multiplexer
